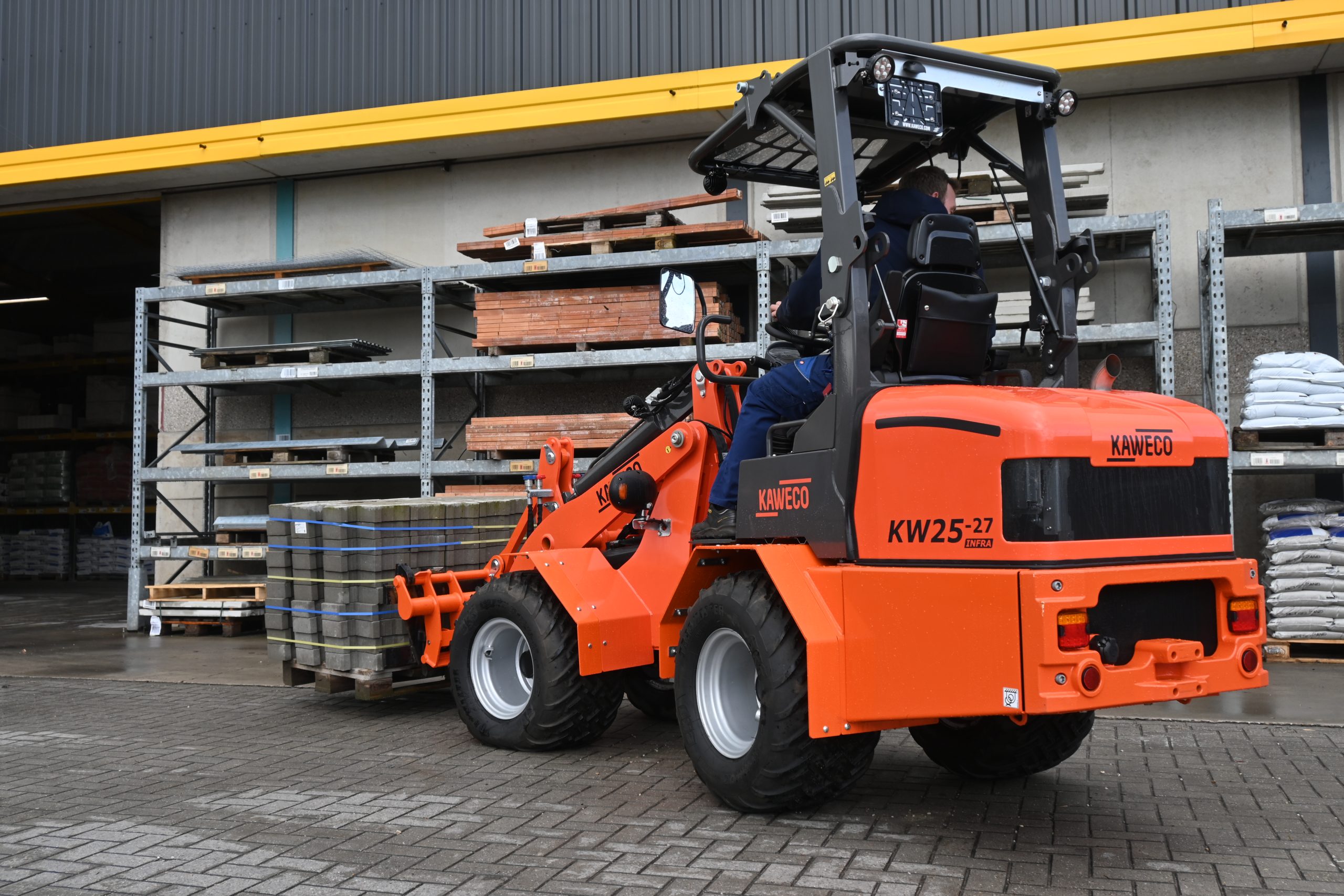

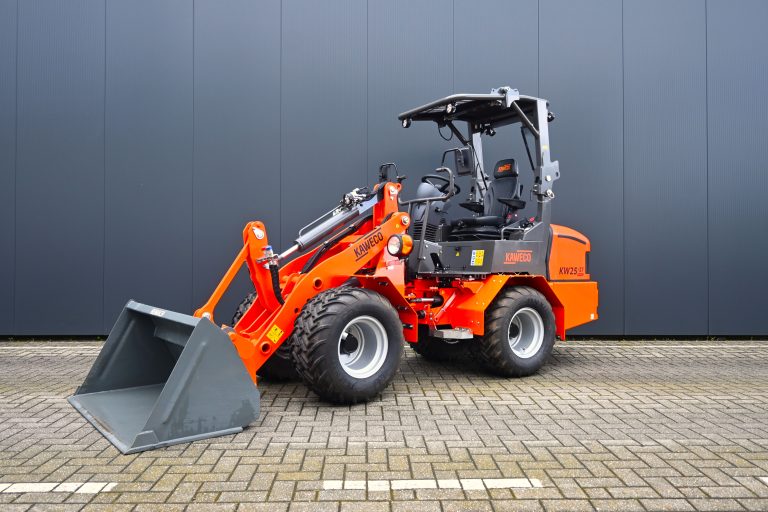

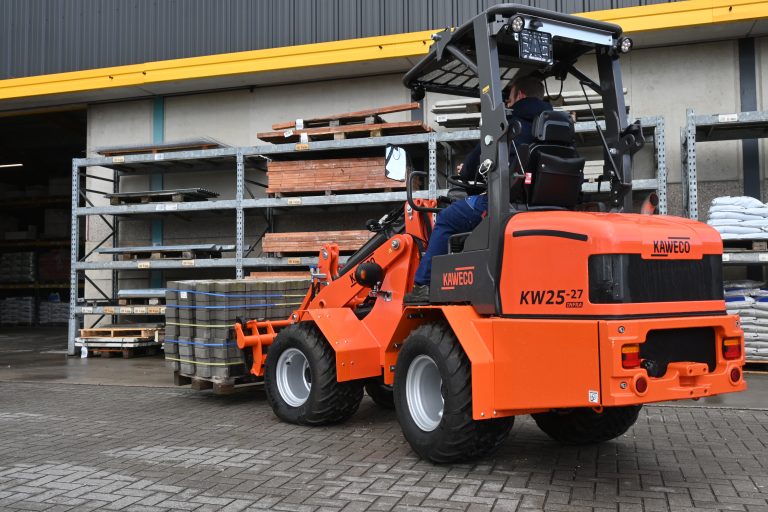

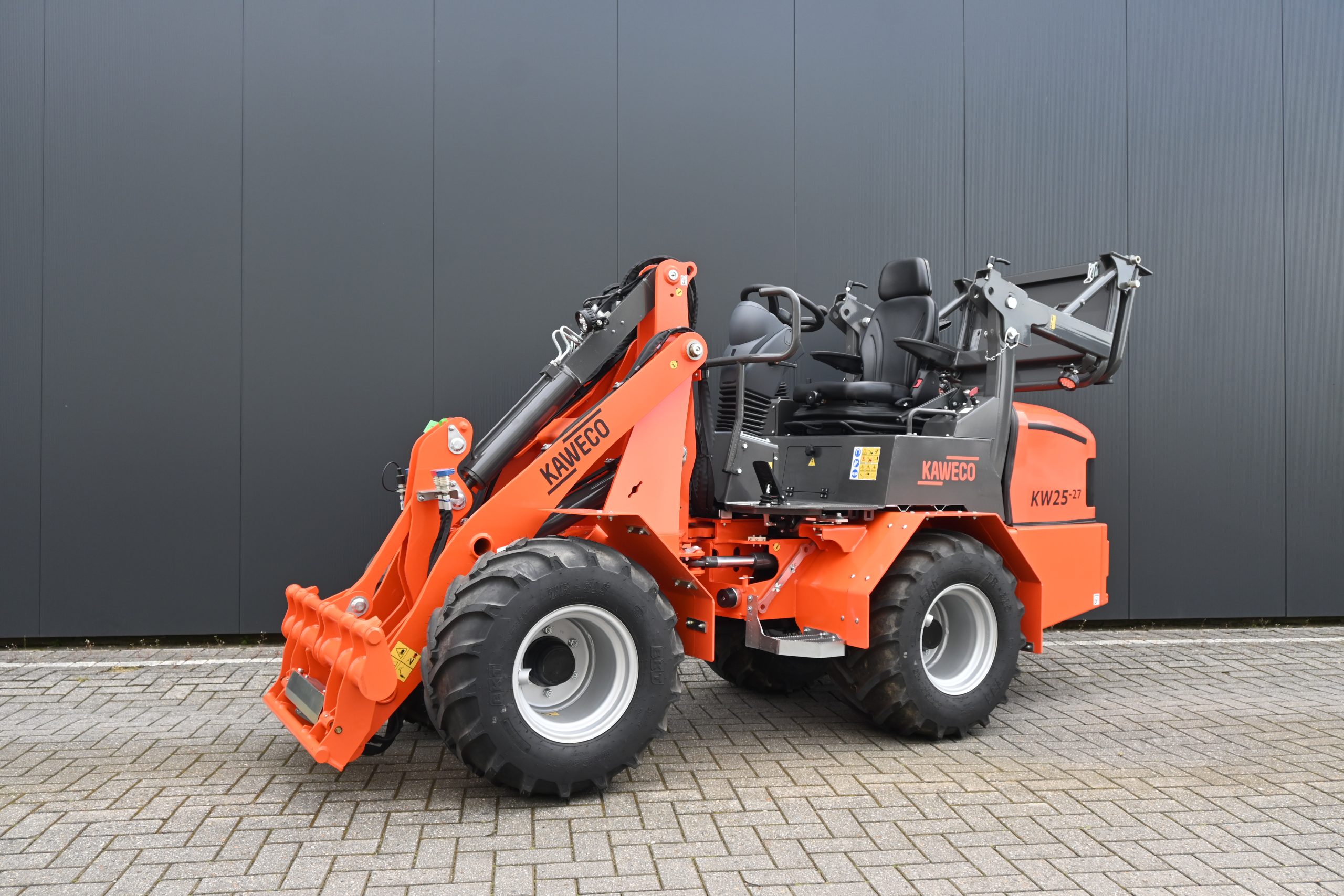

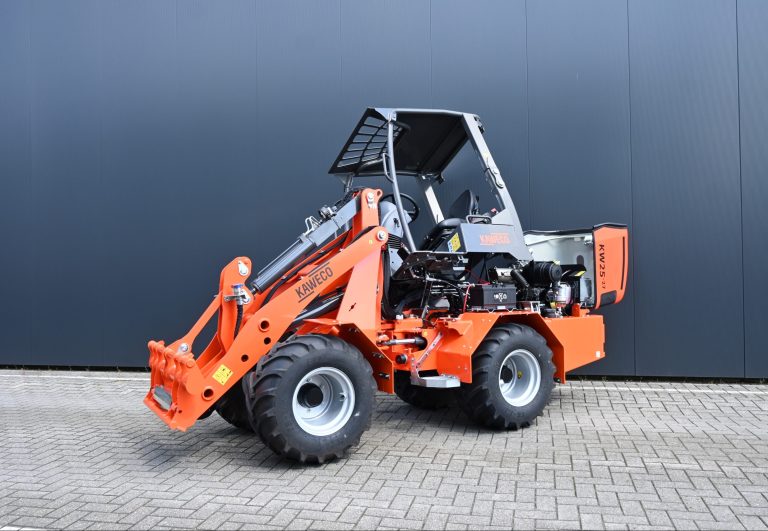

KW25-27 INFRA
2300 kg 2200 kg 27kW/37HP

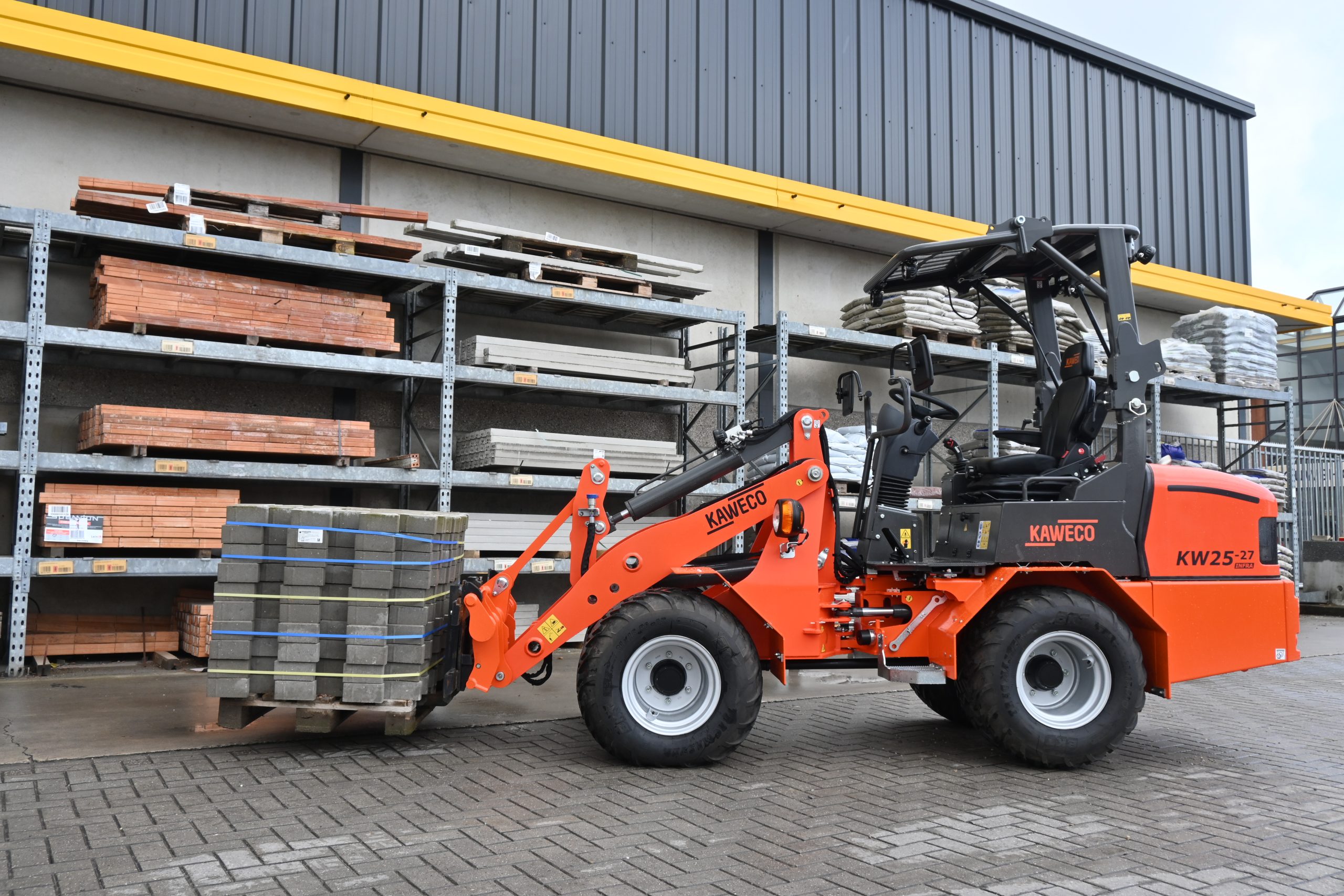

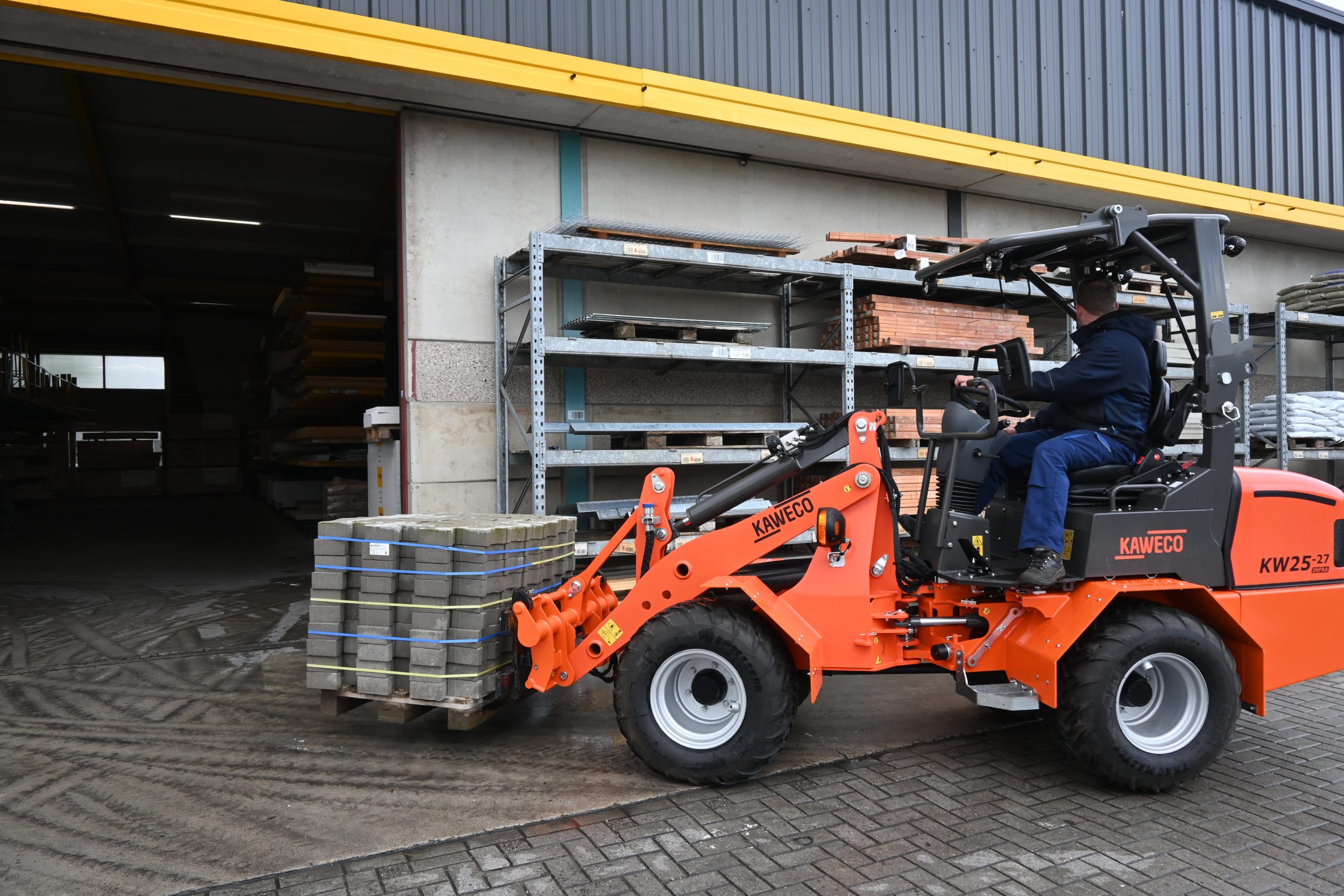

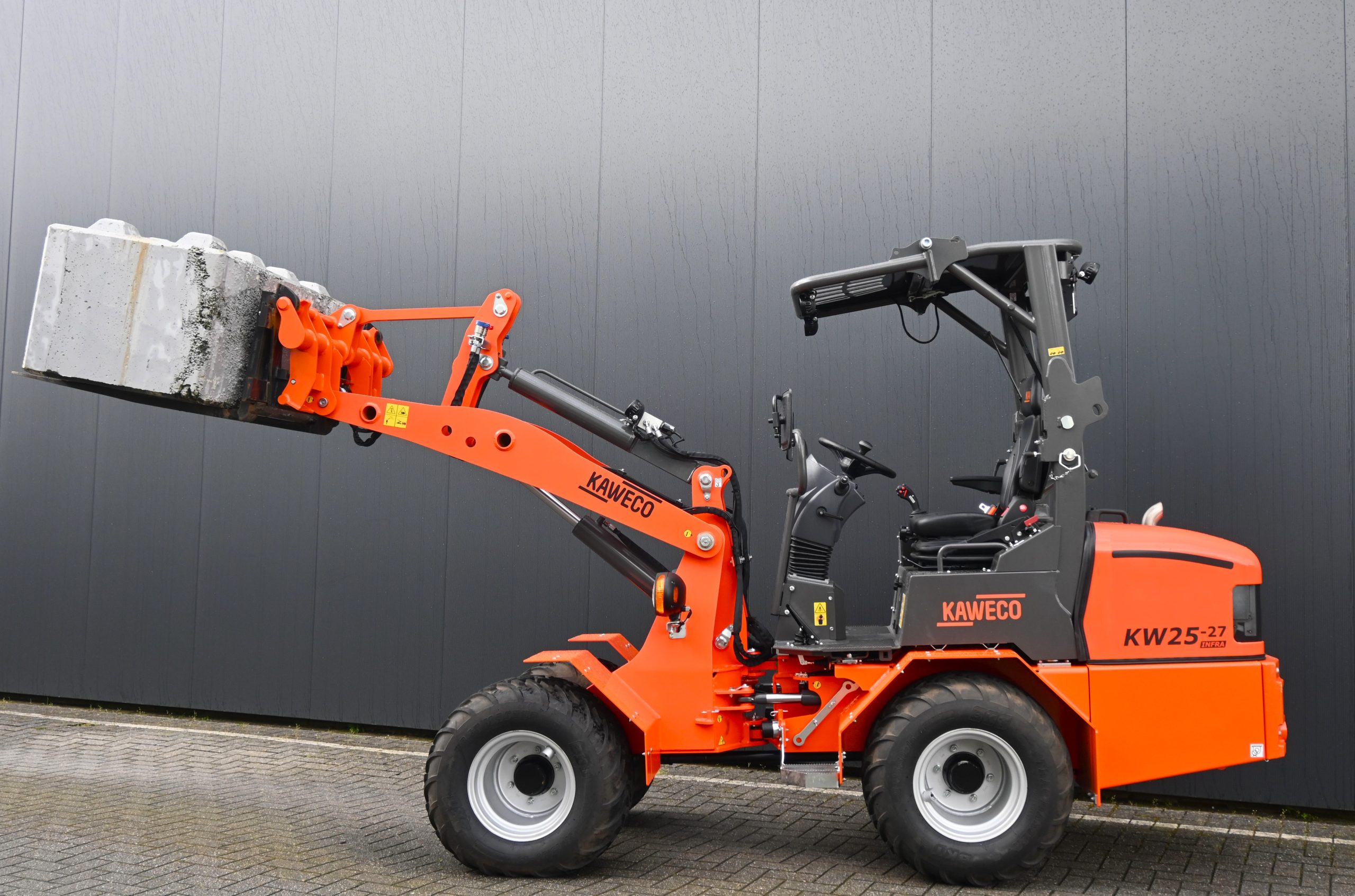

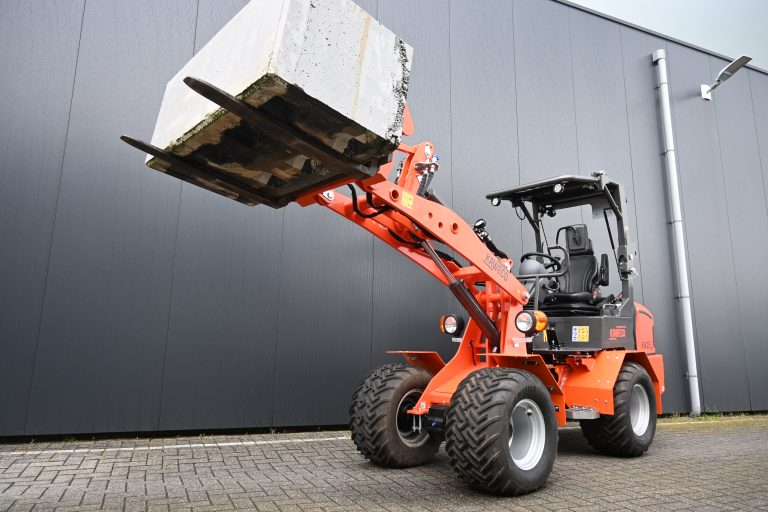

The KW25-27 INFRA is a powerfull machine with a lifting force of 2200 kg. The low front and extended wheelbase makes this machine extremely stable with a heavy load.

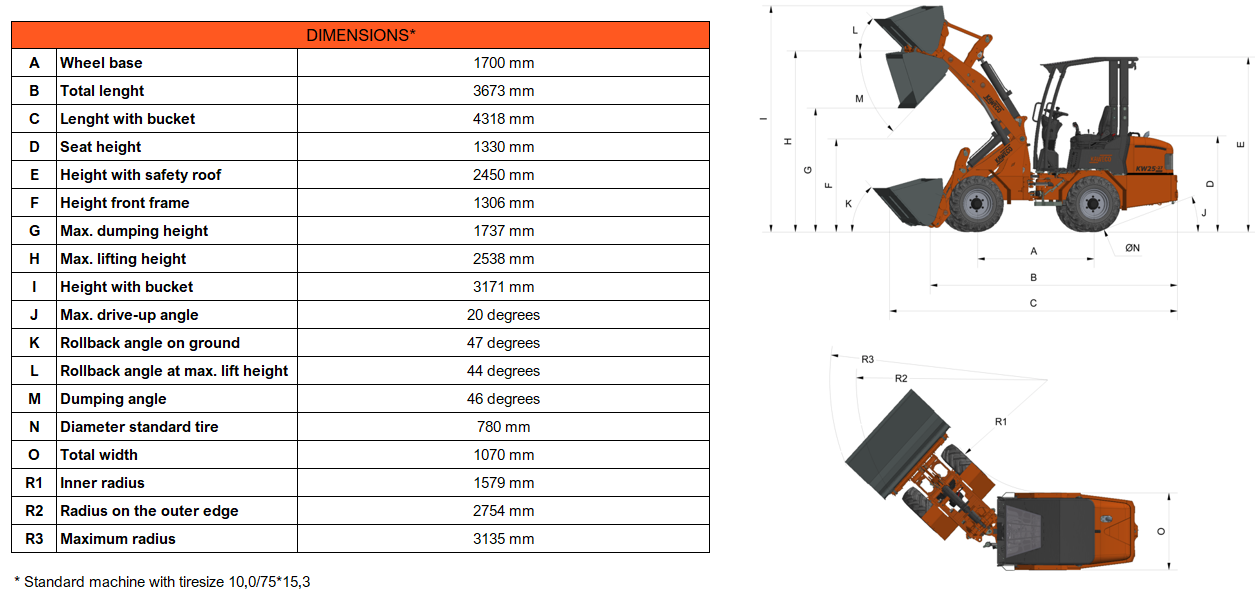

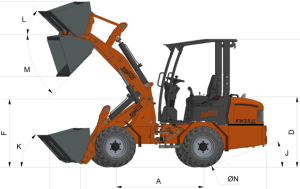

Specifications
- Operating weight
- Lifting power

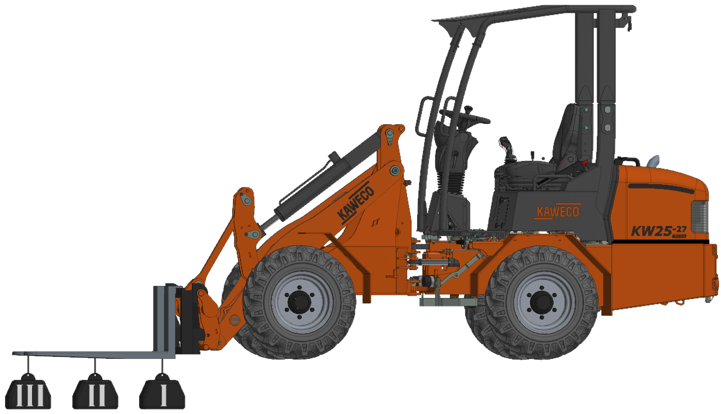

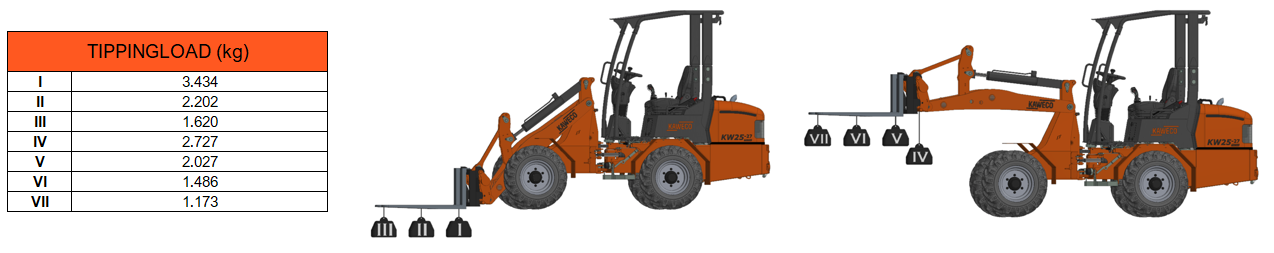

- Tipping load
- Engine power
- Cylinders
- Fuel tank capacity
- Hydraulic tank capacity
- Length without bucket
- Width on standard tires
- 2300 kg
- 2200 kg
- 2350 kg
- 27kW/37HP
- 3
- 44 L
- 38 L
- 3660 mm
- 1150 mm
- Lifting height
- Max. Dumping height
- Travel speed
- Clearance height
- Brake
- Fuel
- Workhydraulics
- Pullforce
- Differential
- 2530 mm
- 1736 mm
- 0-9/0-20 km/h
- 2450 mm
- Drum brake
- Diesel
- 51 L/min
- 2300 kg
- Limited-slip
Standard configuration

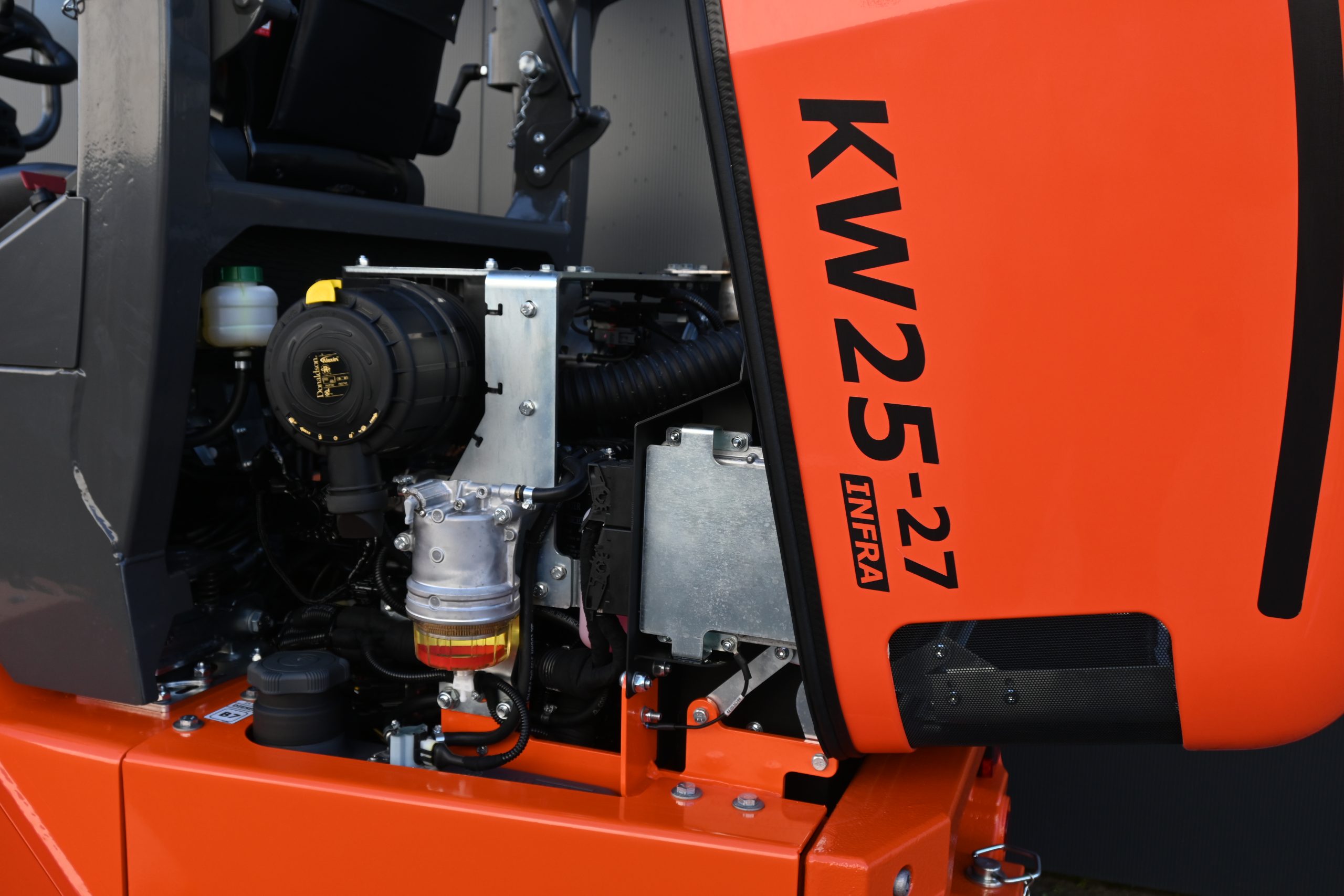

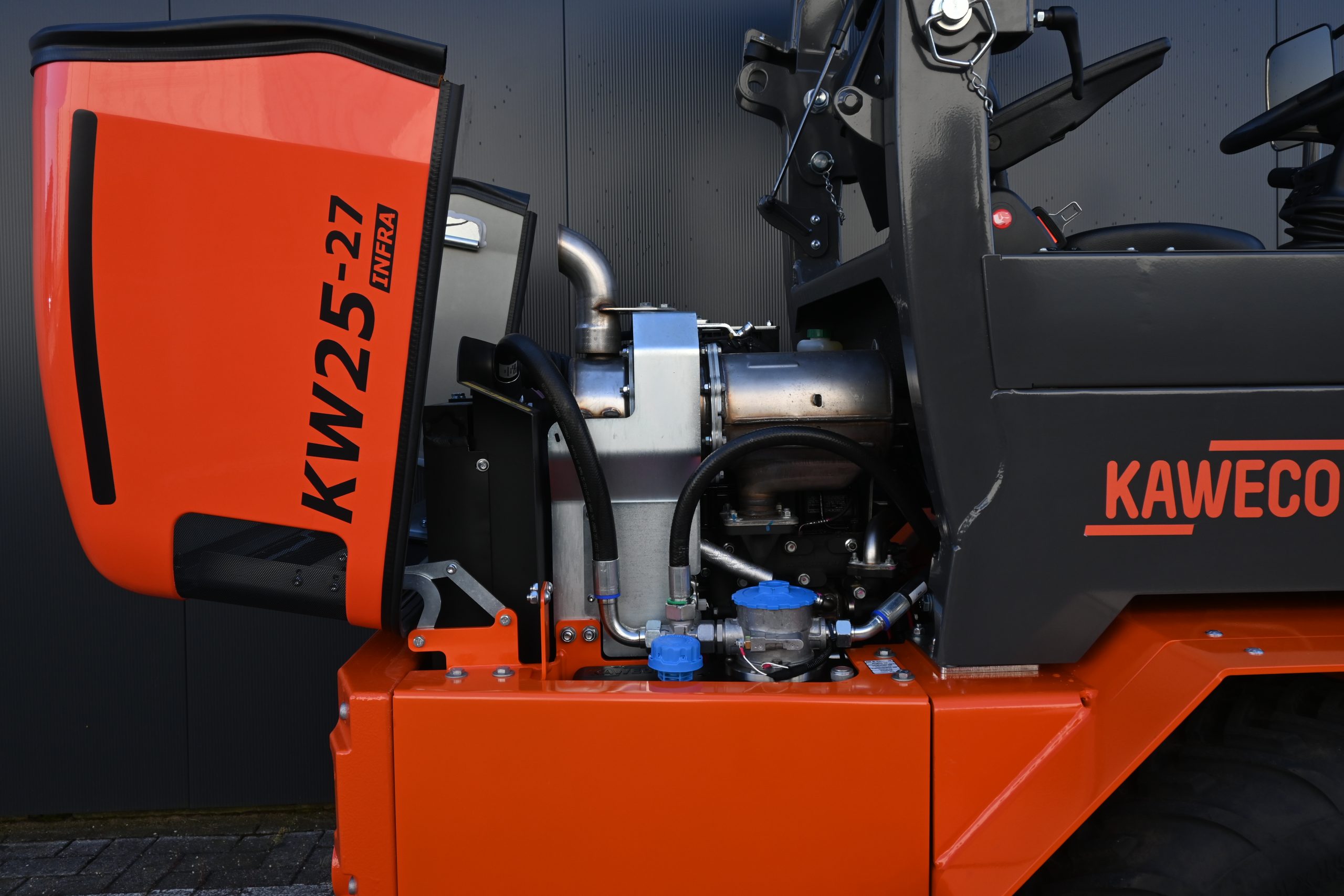

- Power 27KW/37HP

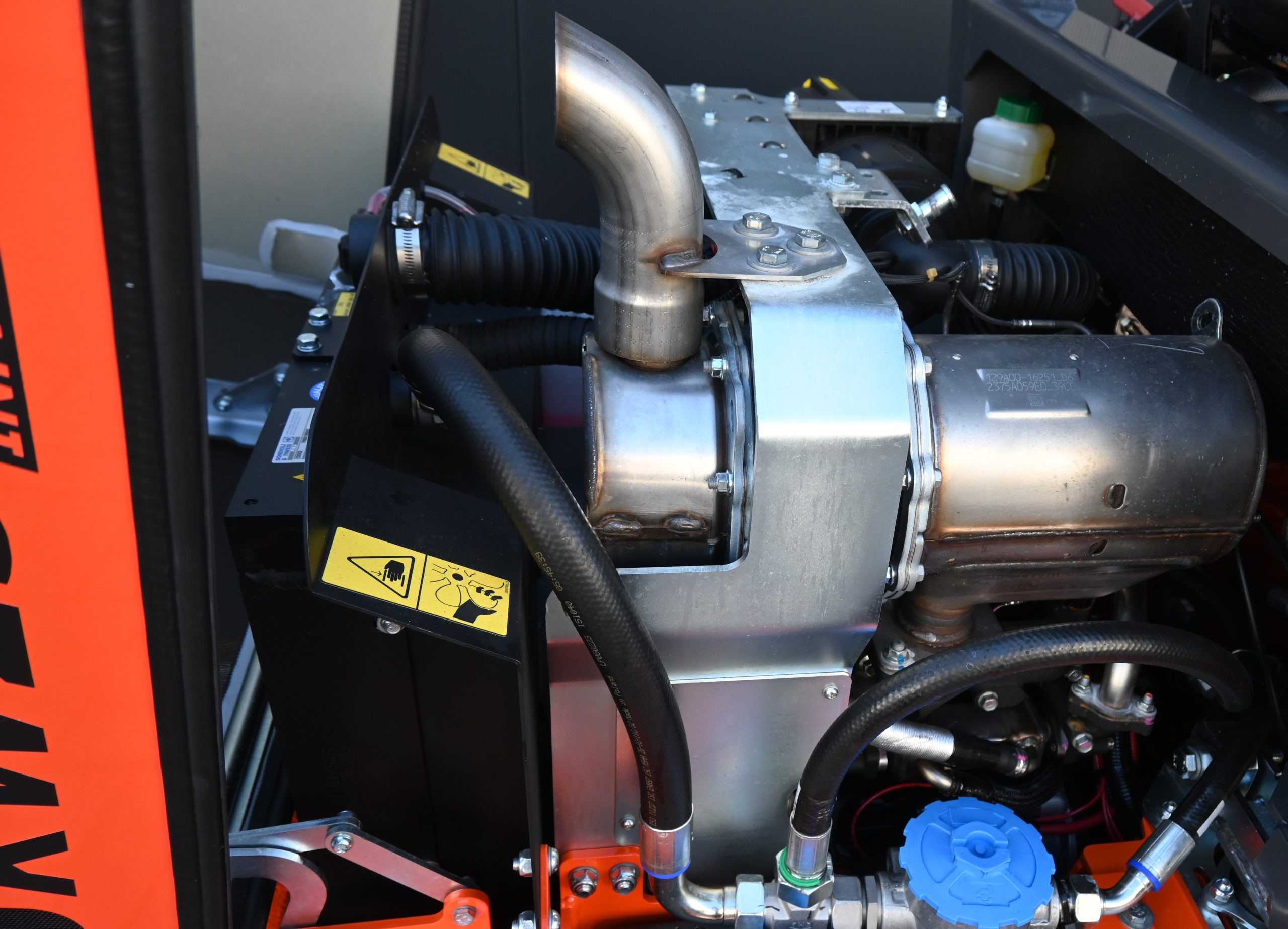

- Diesel Particle Filter (DPF)
- Flat torque curve, optimal operating speed at 1500 RPM

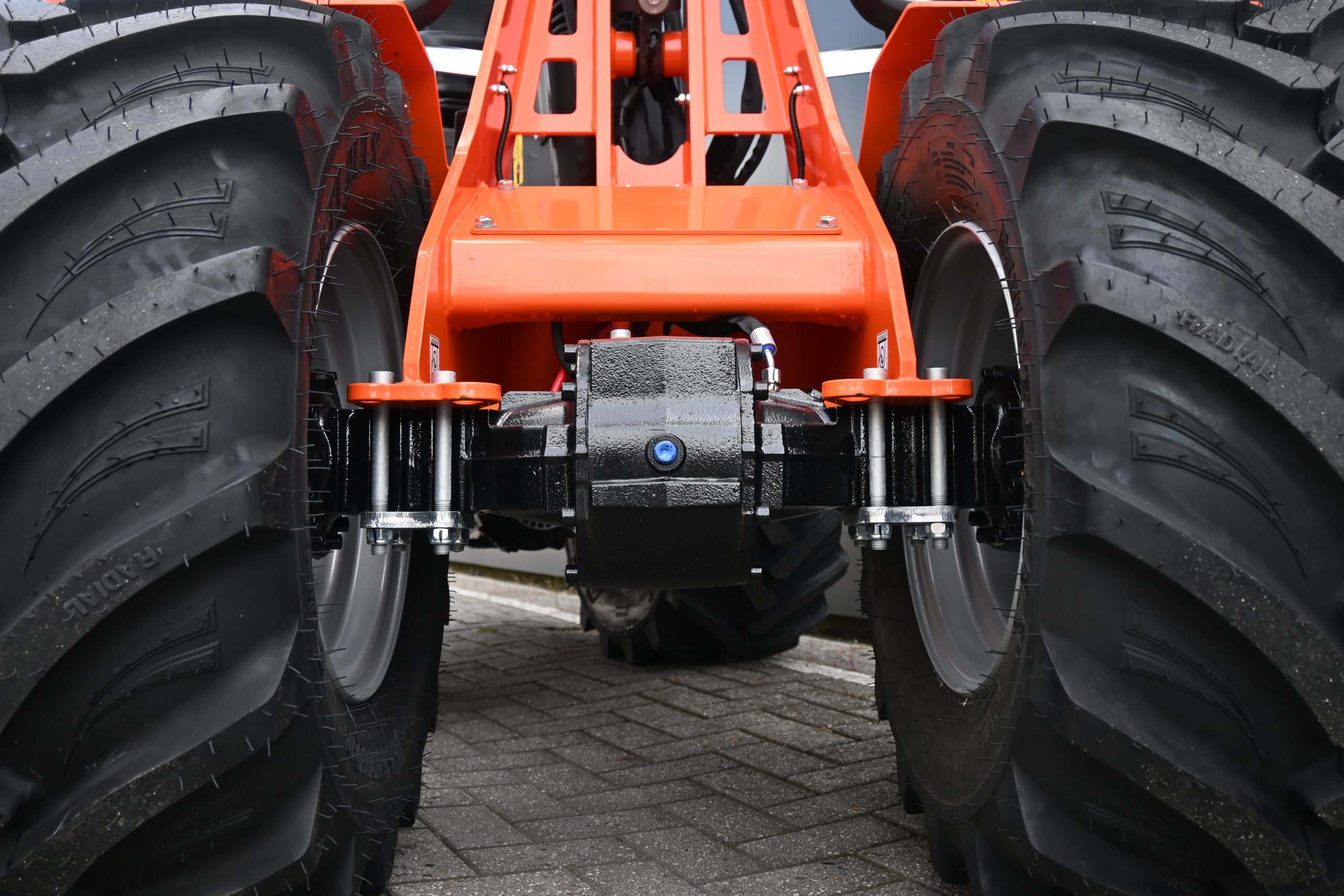

- 8-Tons planetary axles
- Limited-slip differential
- Pulling force of 2300 kg

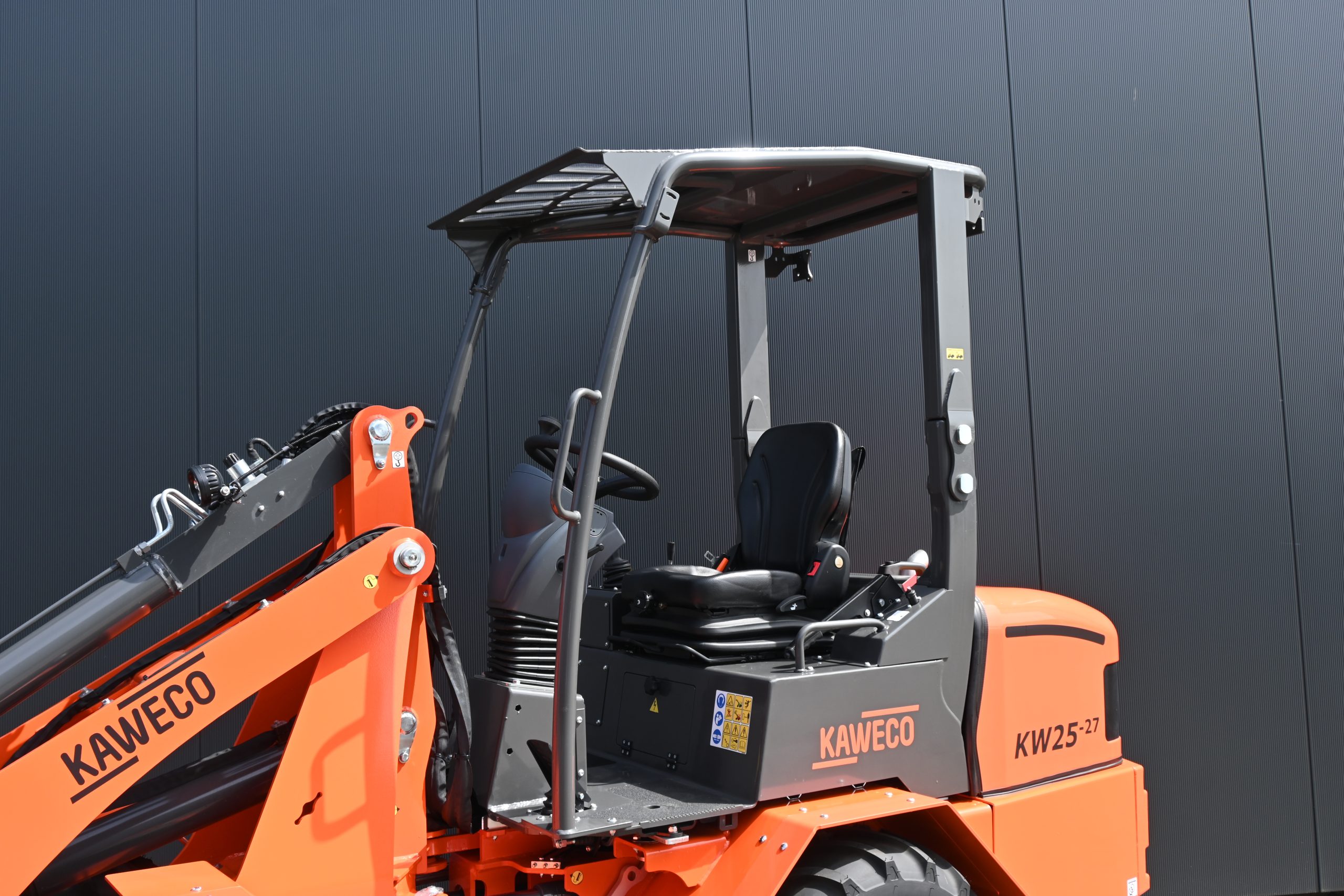

- Protects the operator from falling objects and potential machine rollover.
- Certified according to ISO 3449:2008 and ISO 3471:2008
- Tractionprofile
- Width: 264 mm
- Diameter: 780 mm
- Machinewidth: 1.150 mm
- Through the float position function, the lift cylinder can move along with the unevenness of the ground
- Mechanically operated with hold function

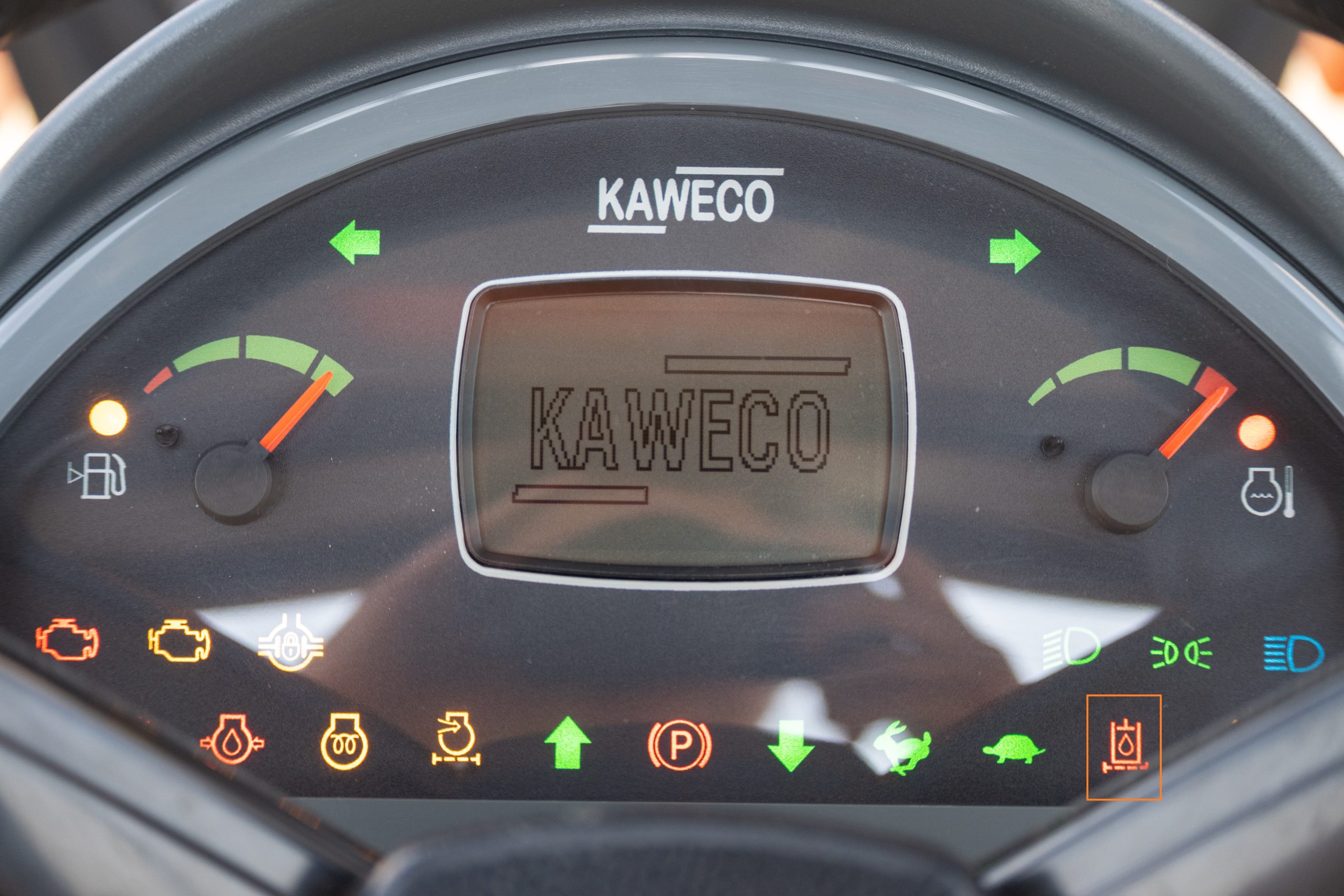

- Alerts for hydraulic filter element contamination

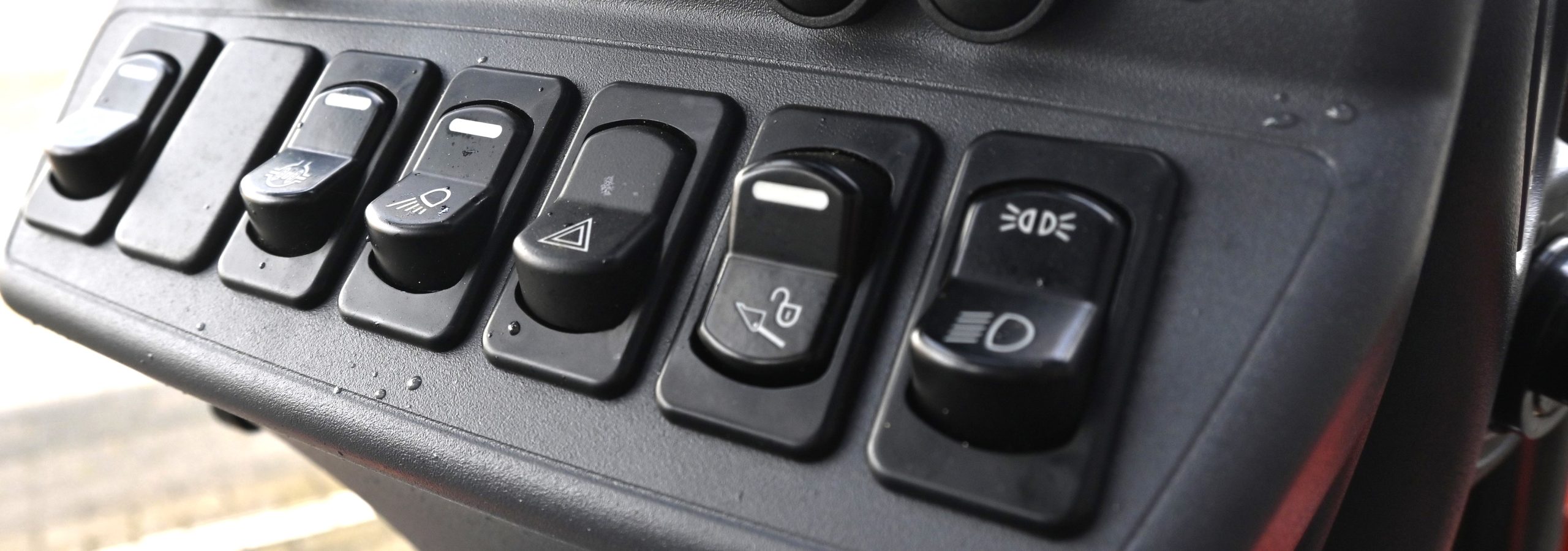

- Lockable by switch on the dashboard

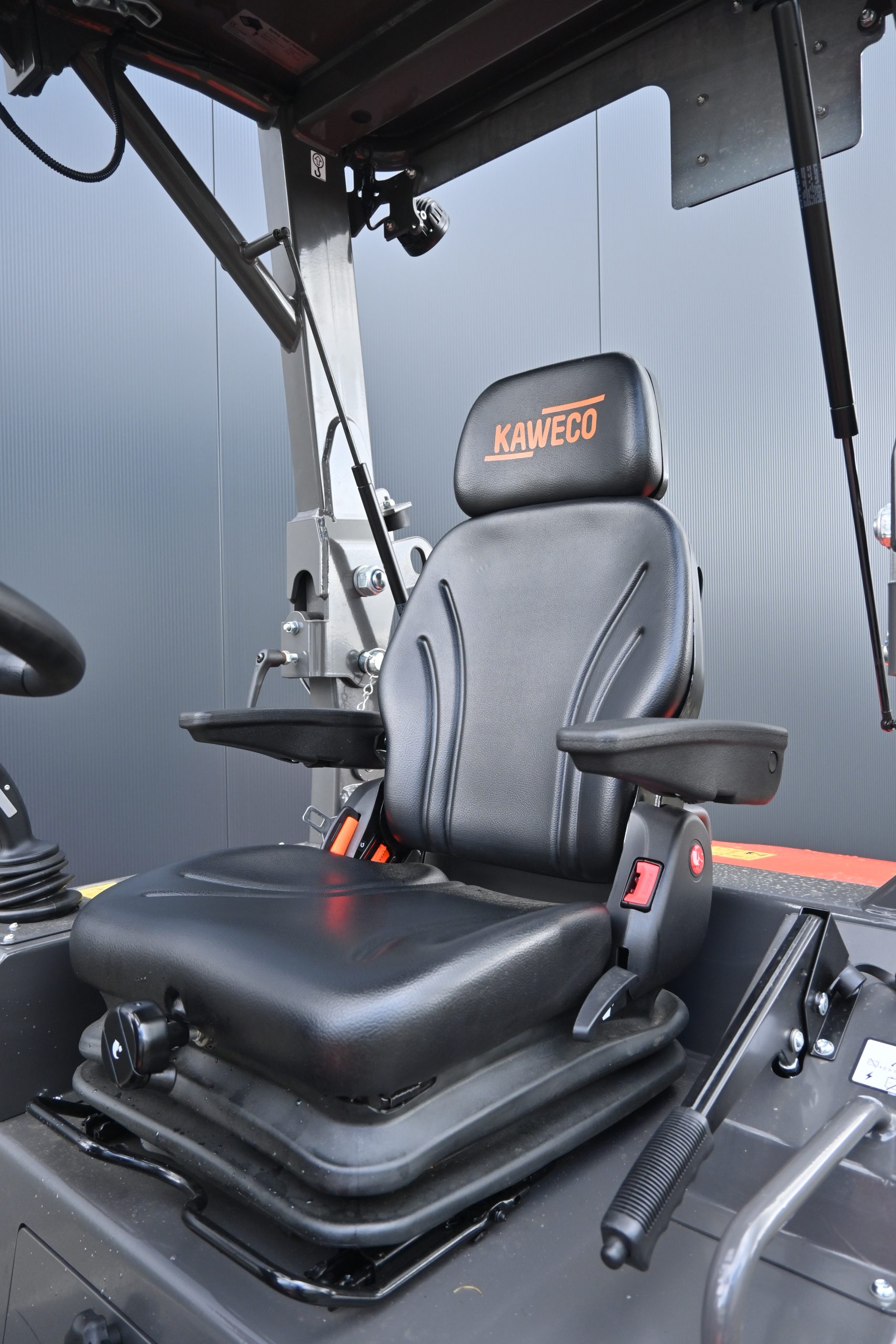

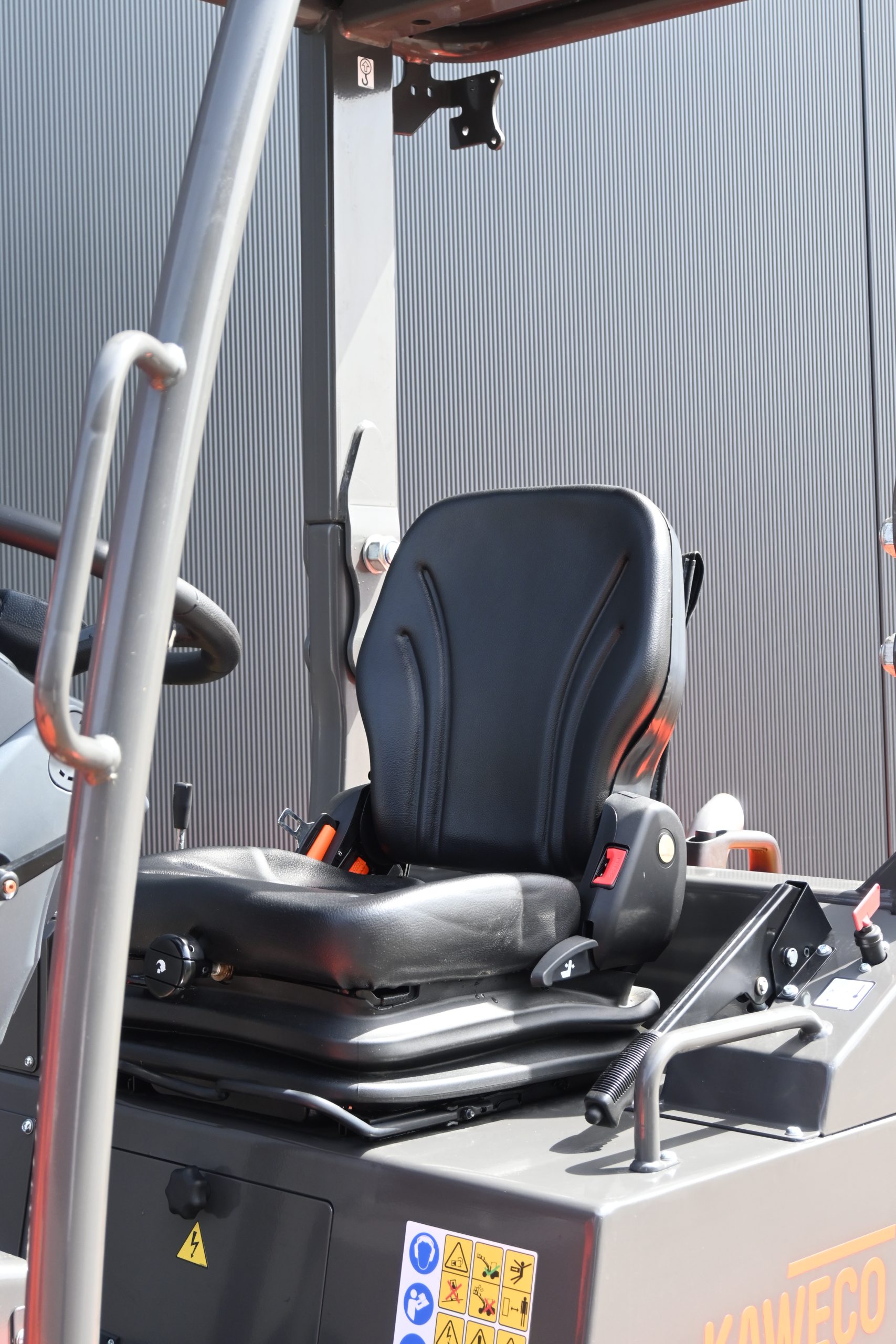

- Adjustable seat suspension
- Safety switch
- Safety belt

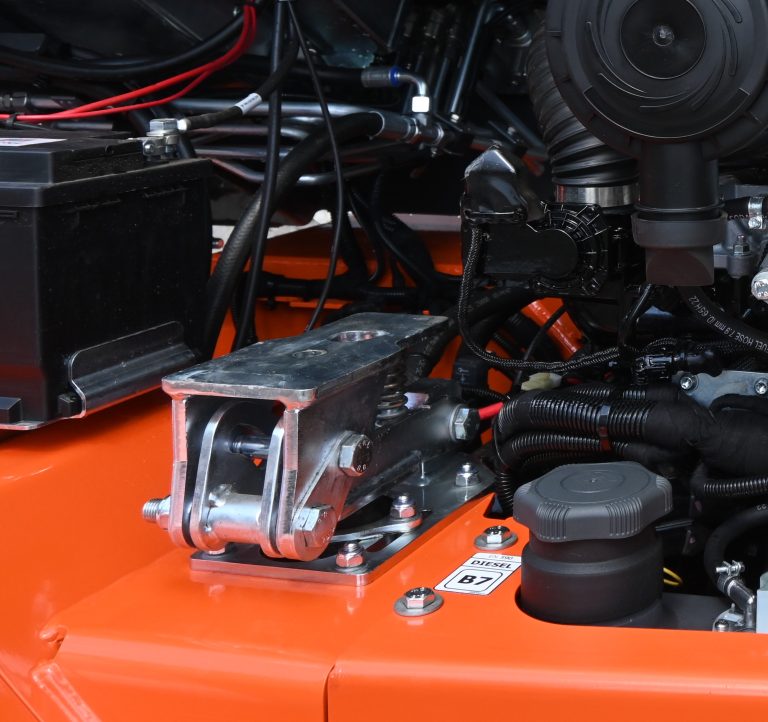

- The adjustable cabin suspension provides a comfortable working environment

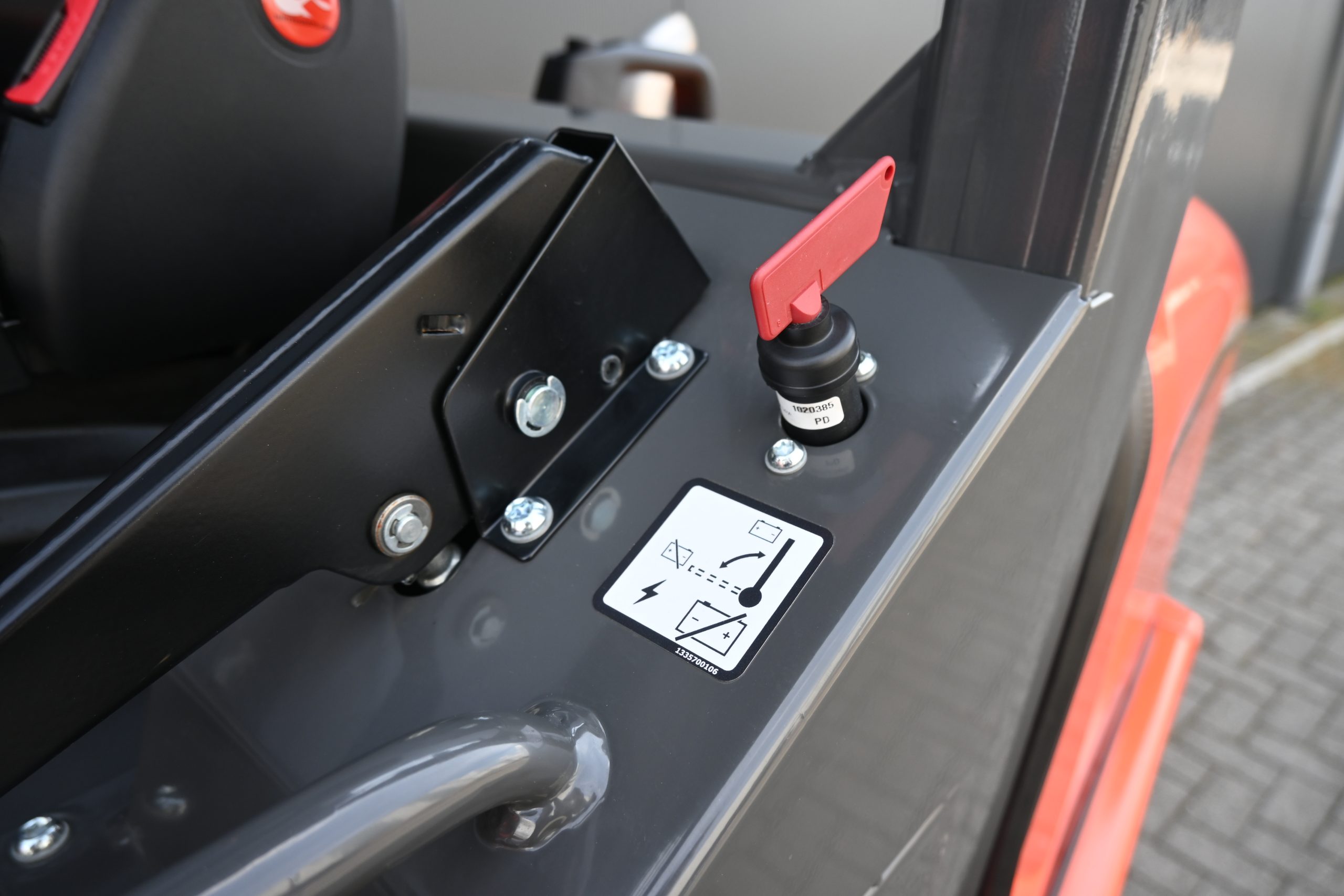

- Machine de-energization

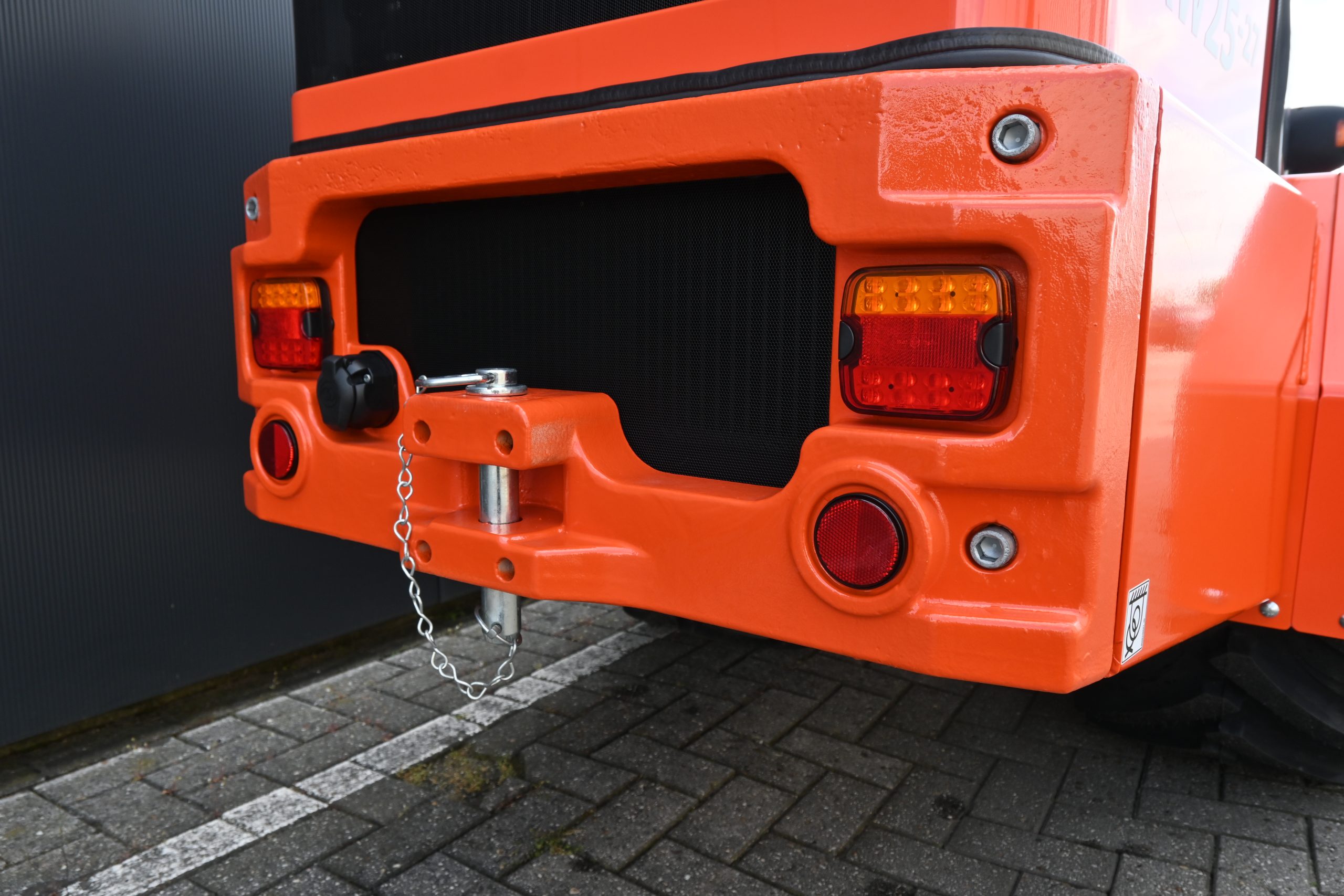

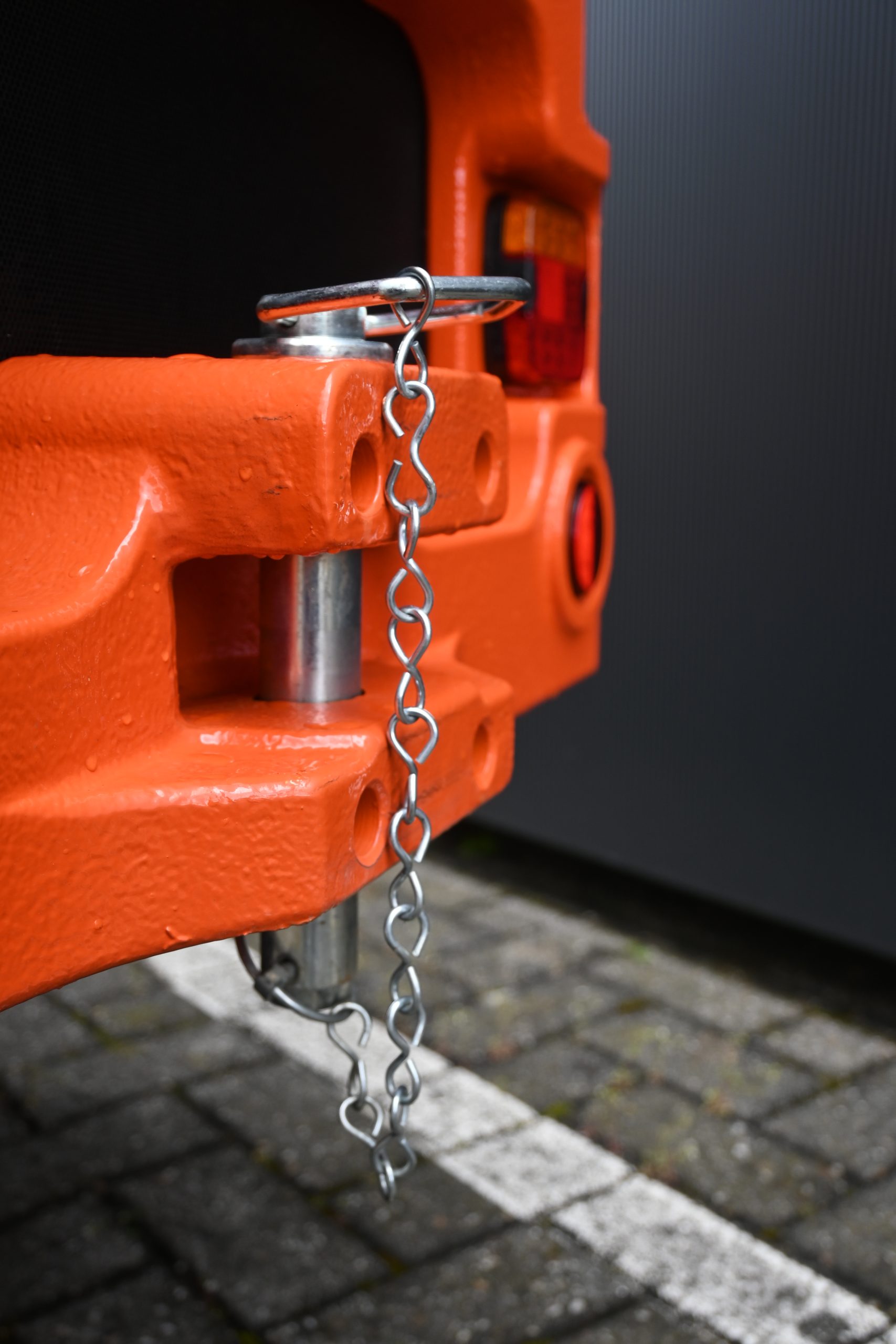

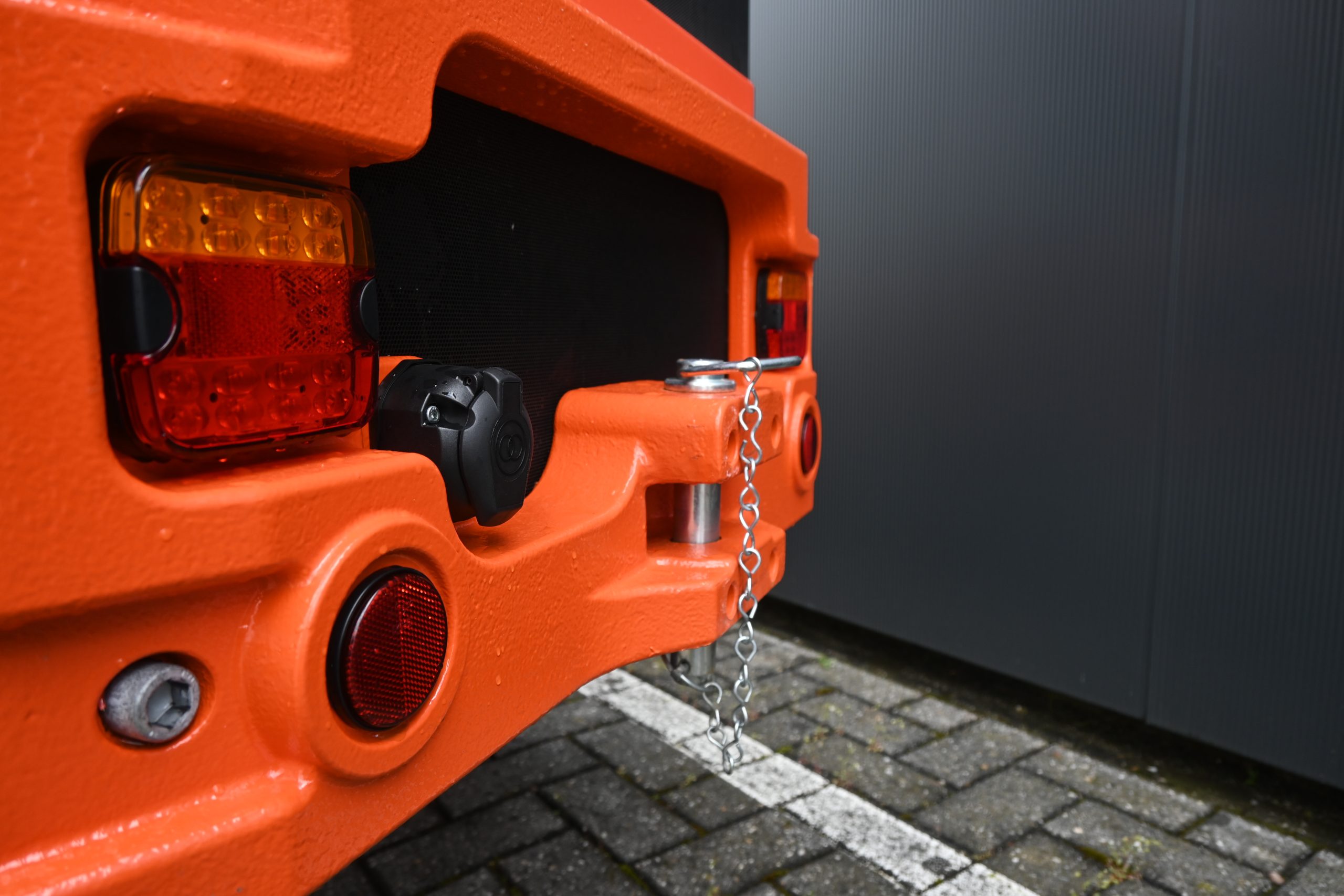

- Integrated tow hitch

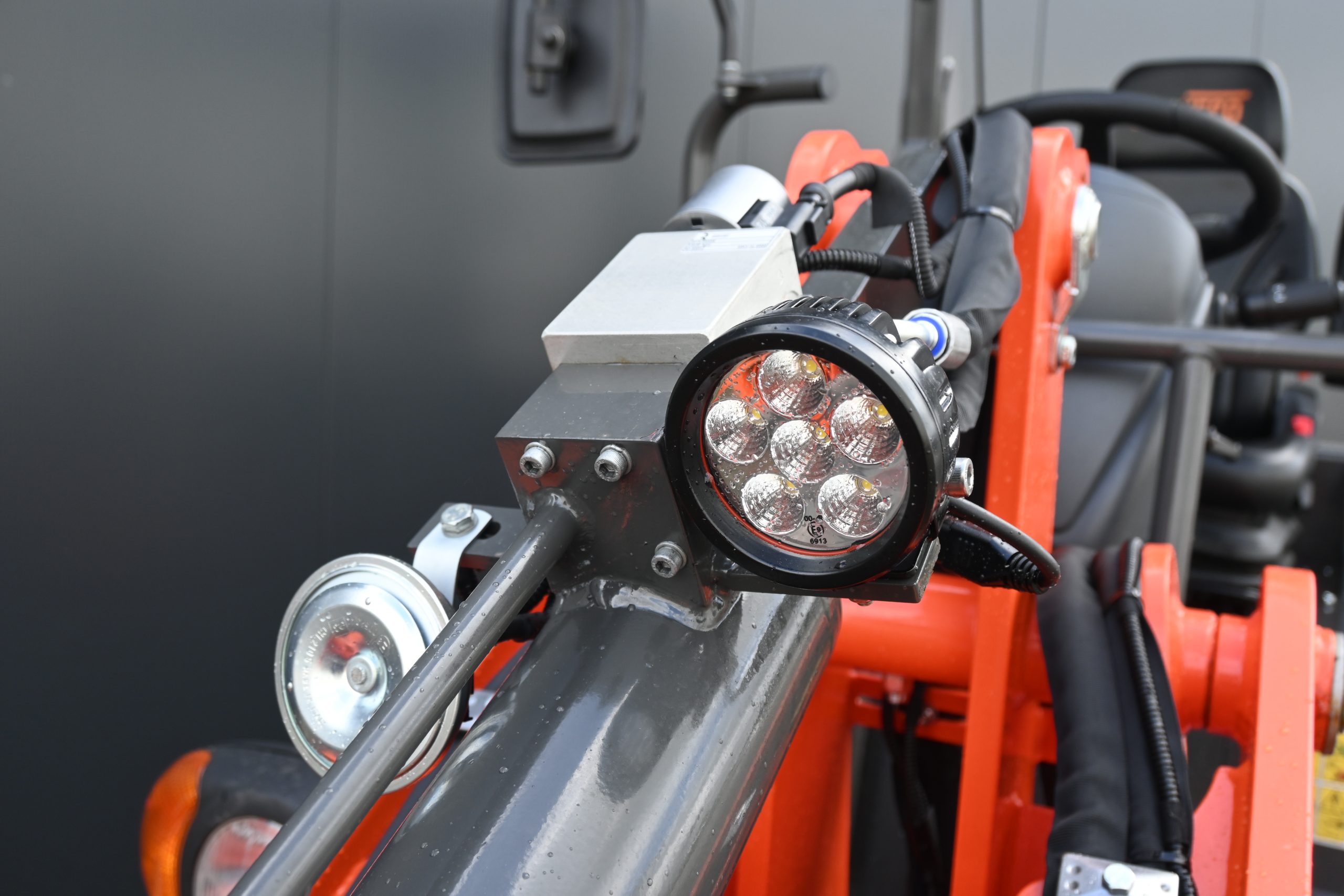

- Good visibility of the boom in dark conditions
- 1600 Lumens

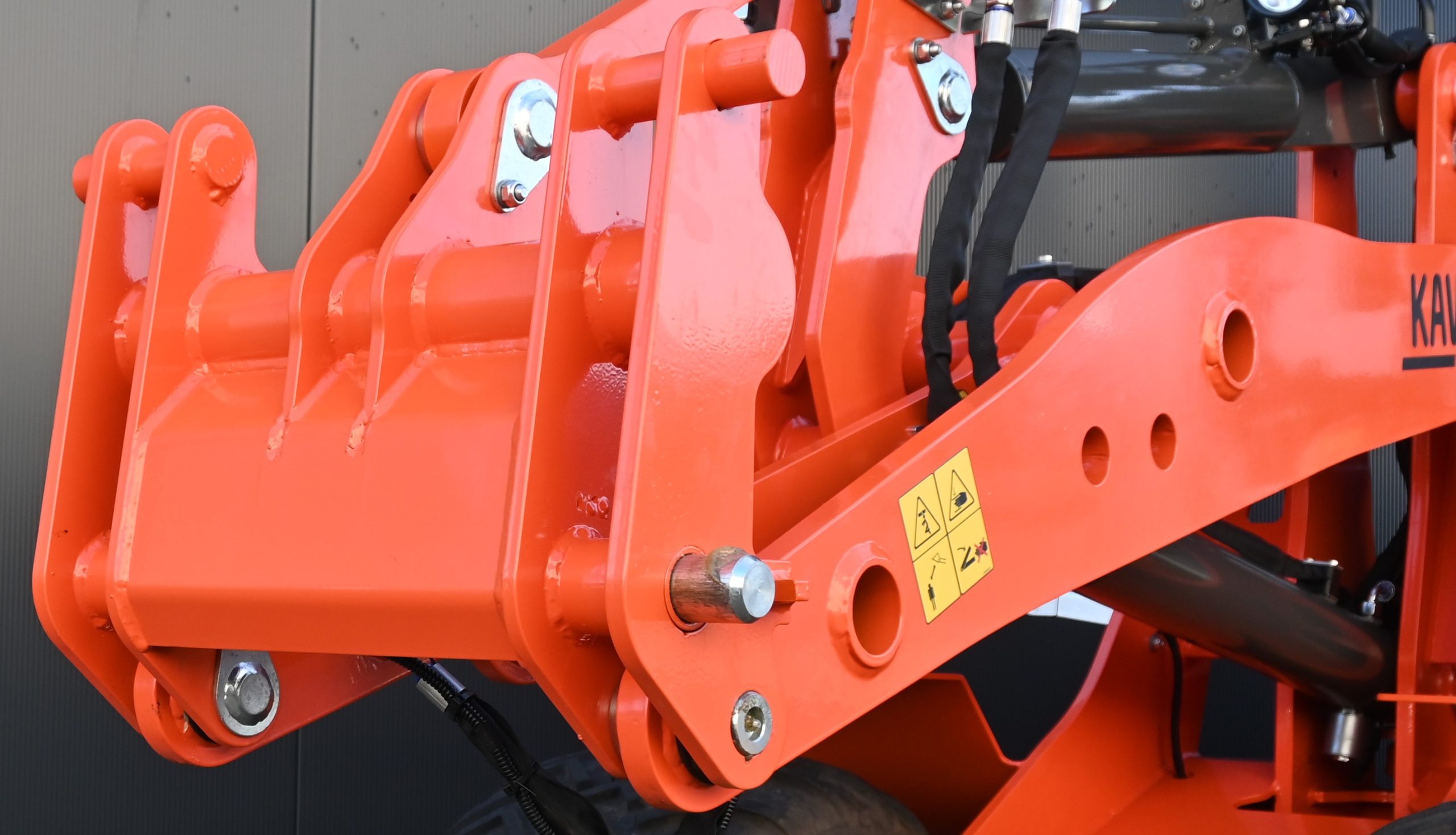

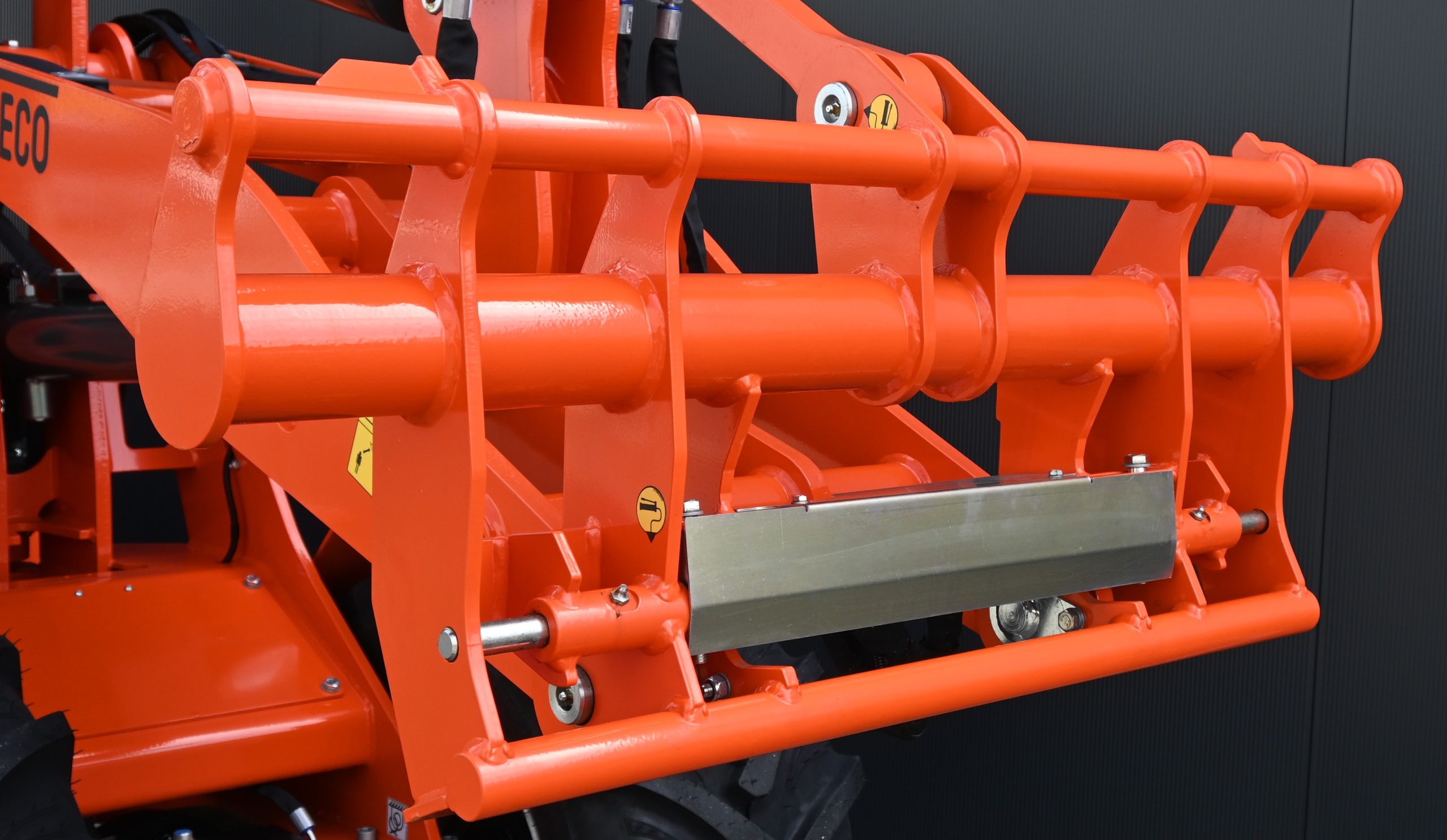

- Hydraulic quick coupler system
- Attach and detach from the driver’s seat
Experience ultimate work comfort!
Options

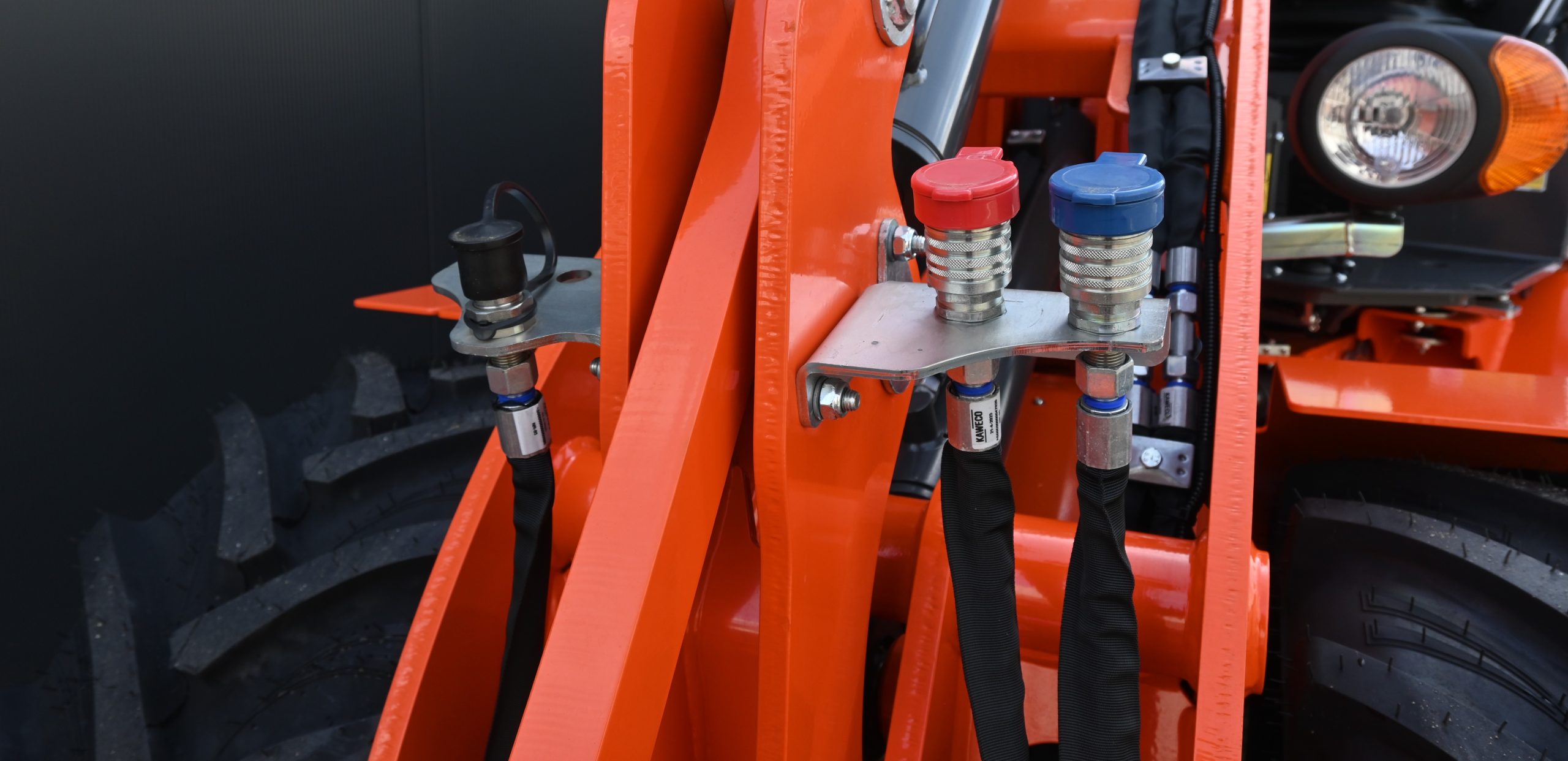

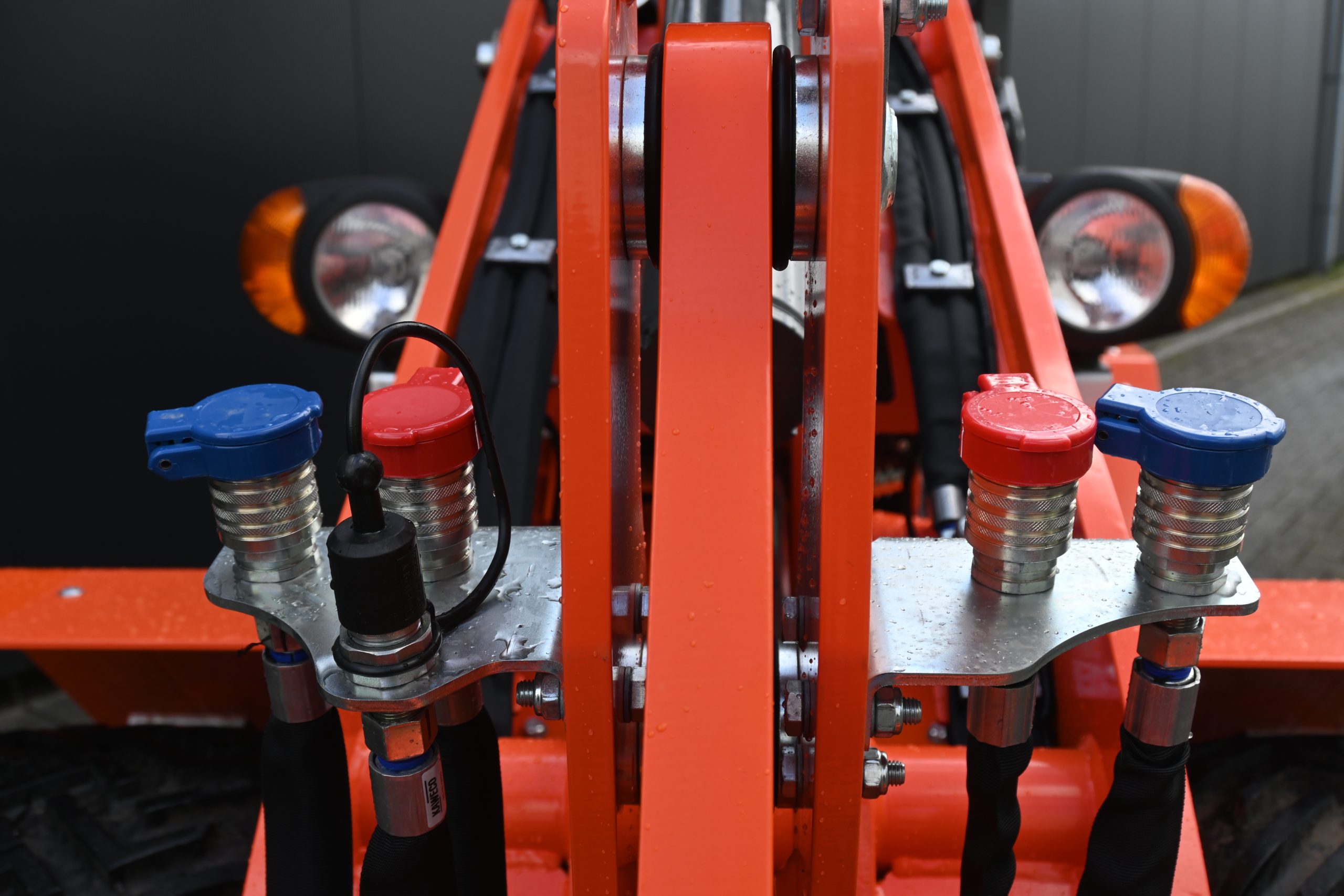

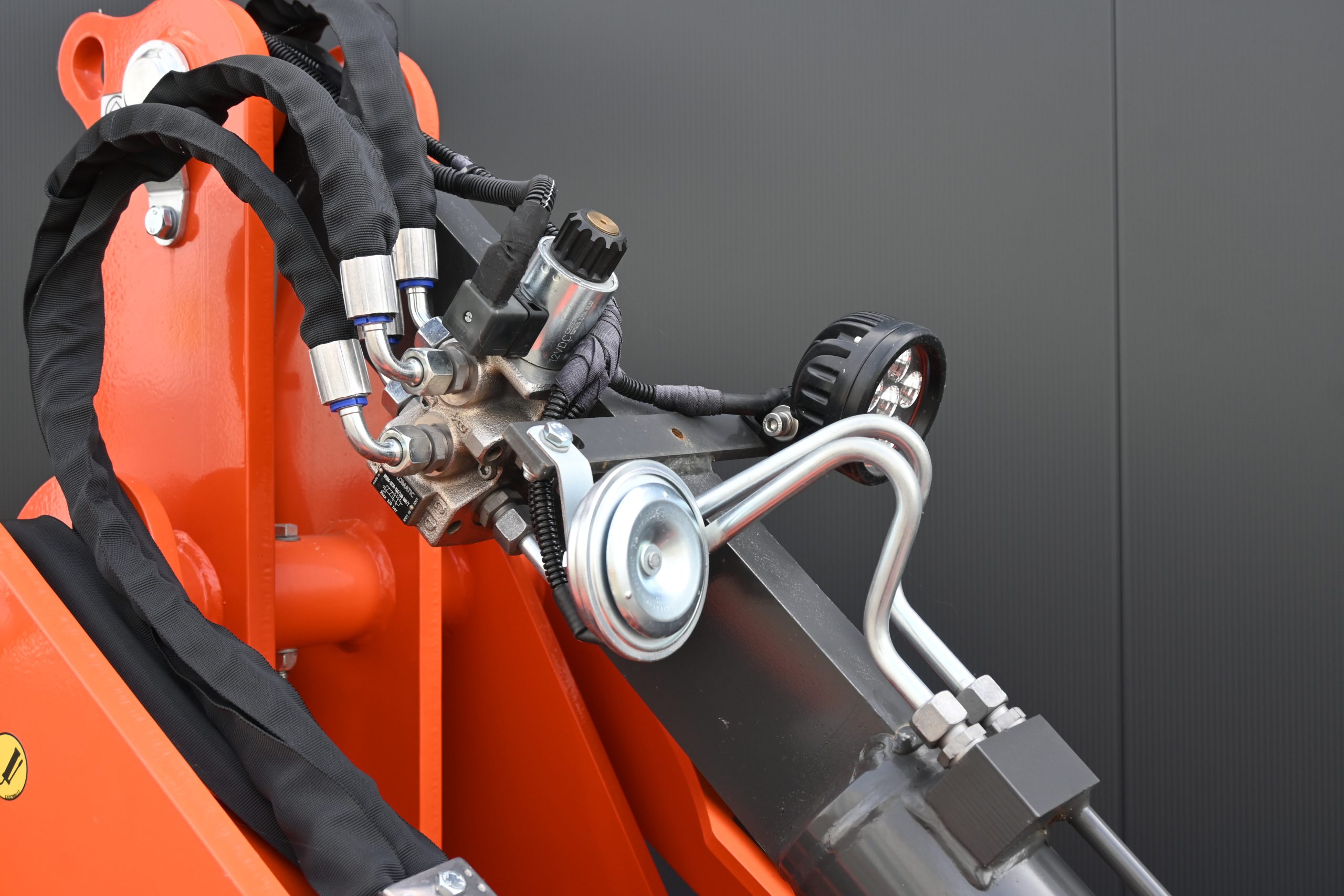

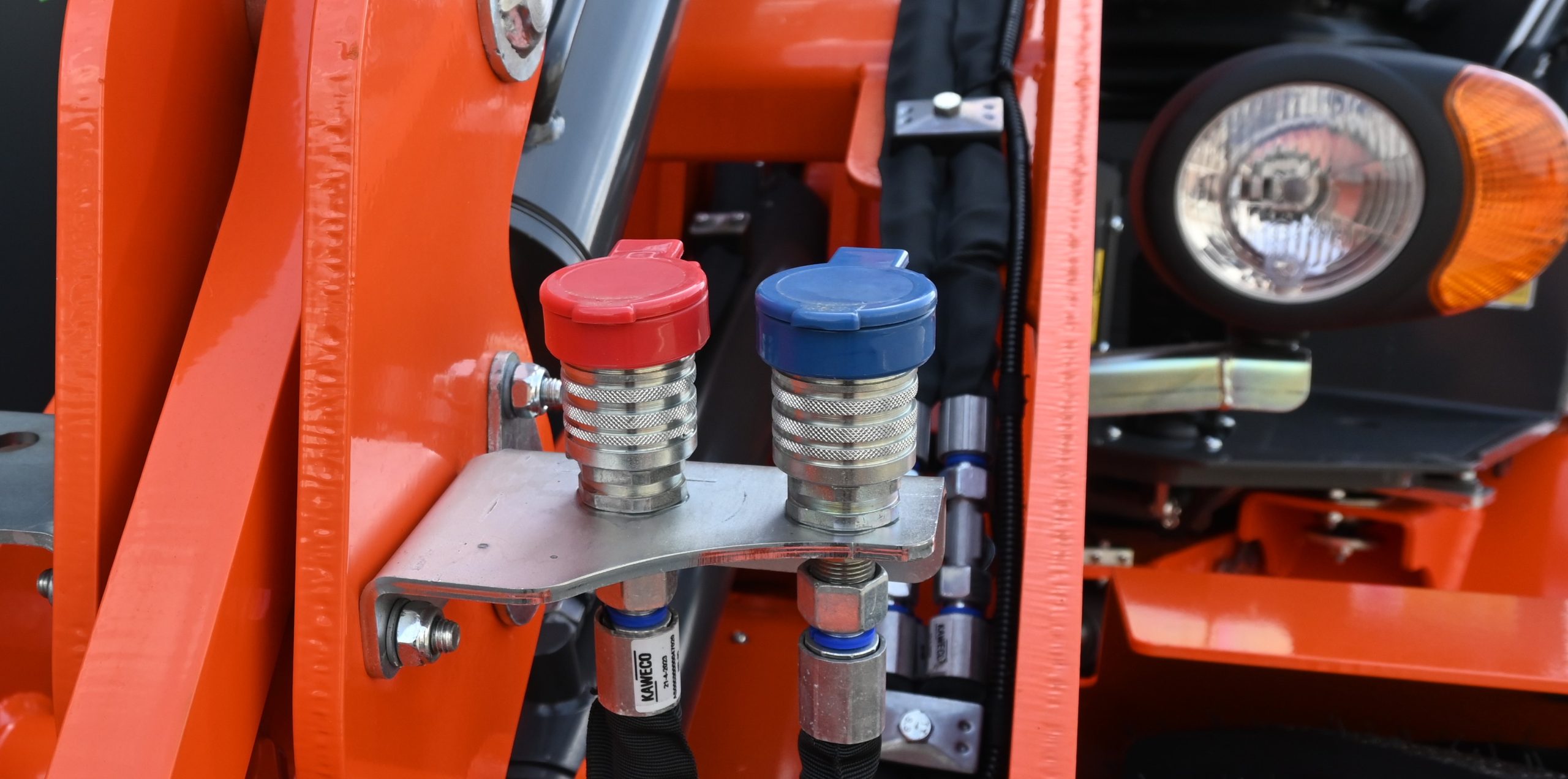

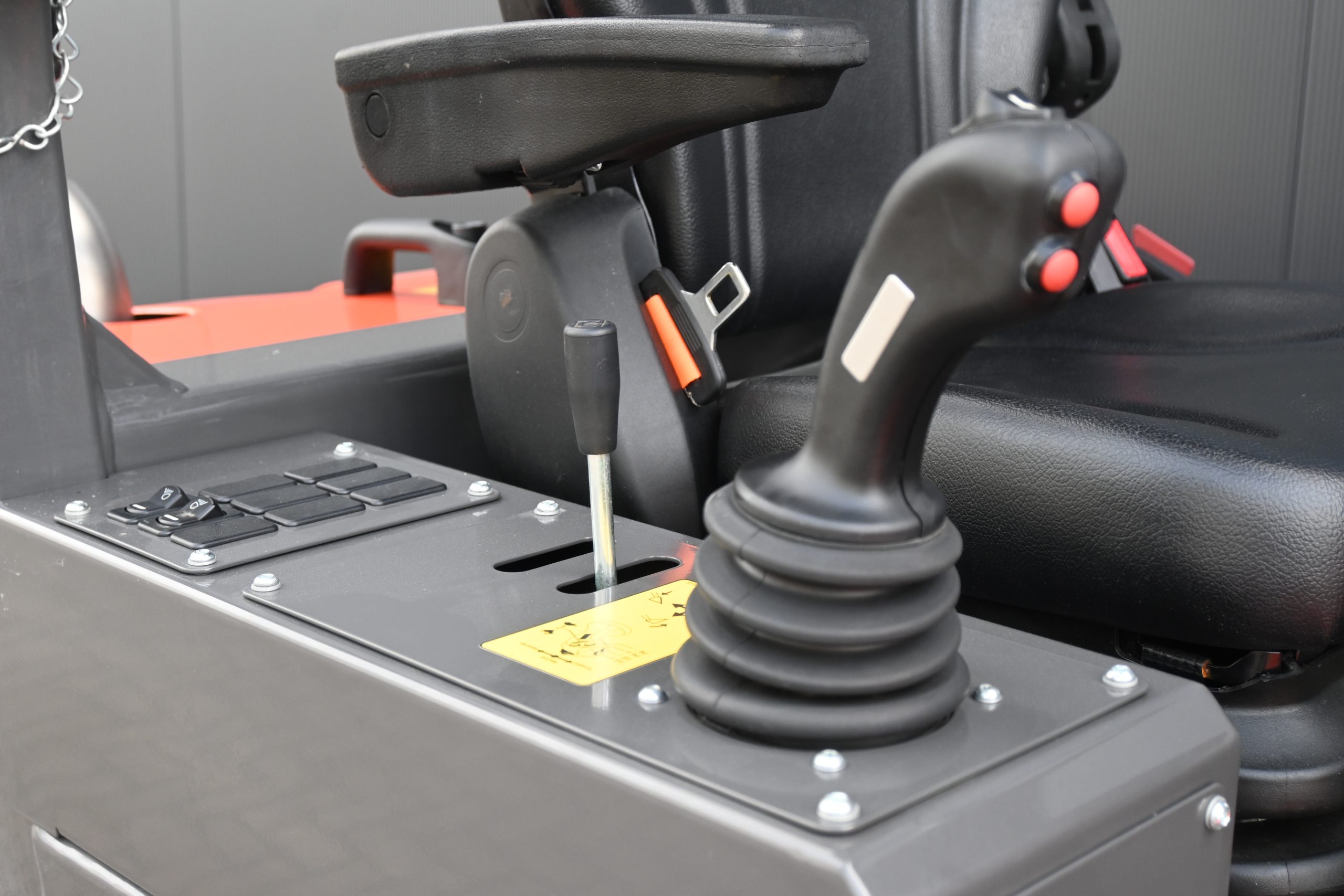

- 2-way mechanically operated
- 2-way electrically operated

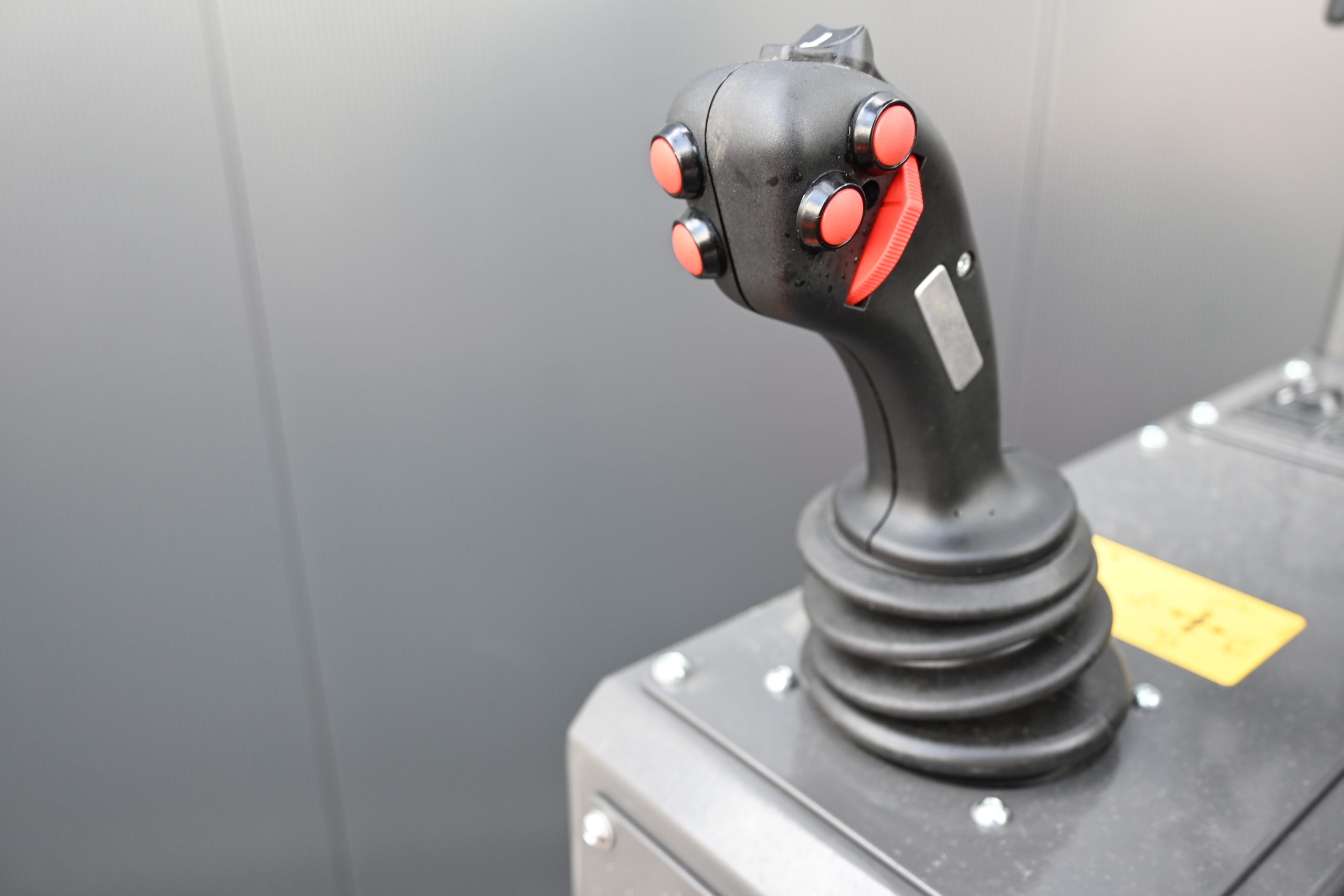

- Electronic proportional by joystick
- Expandable with a hold function
- Operate the accelerator pedal as a drive pedal
- Driving speed independent of engine speed
- Cruise control
- The bucket cylinder operates independently of load
- Prevents the bucket cylinder from advancing
- Ideal for leveling a sand track
- Locks the differential
- Maximizes traction
- Ensures stable load handling on uneven terrain
- Enhances driving comfort
- Custom connector available upon request
- Ball Ø45
- Implement pin Ø30

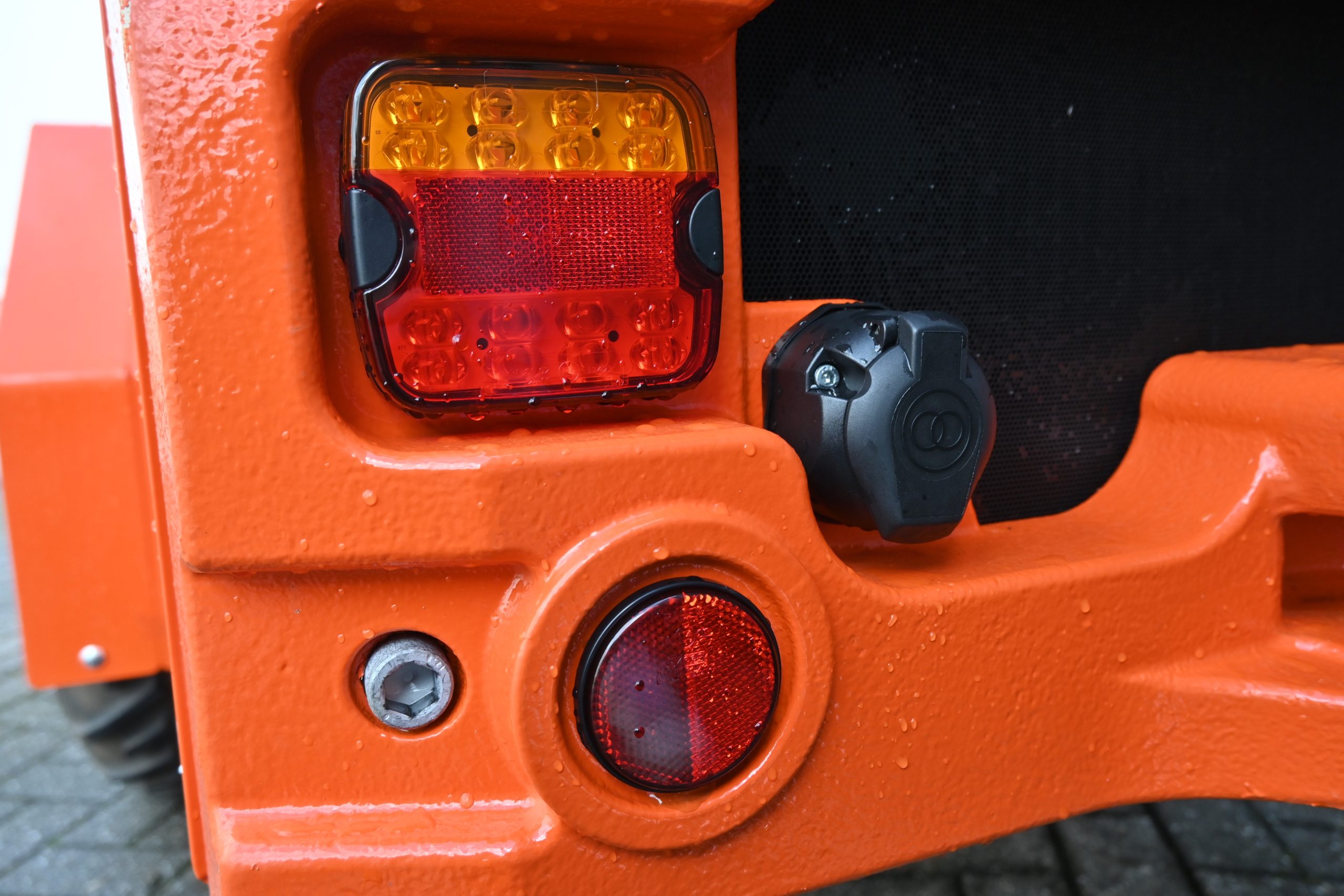

- Connection for trailer lighting

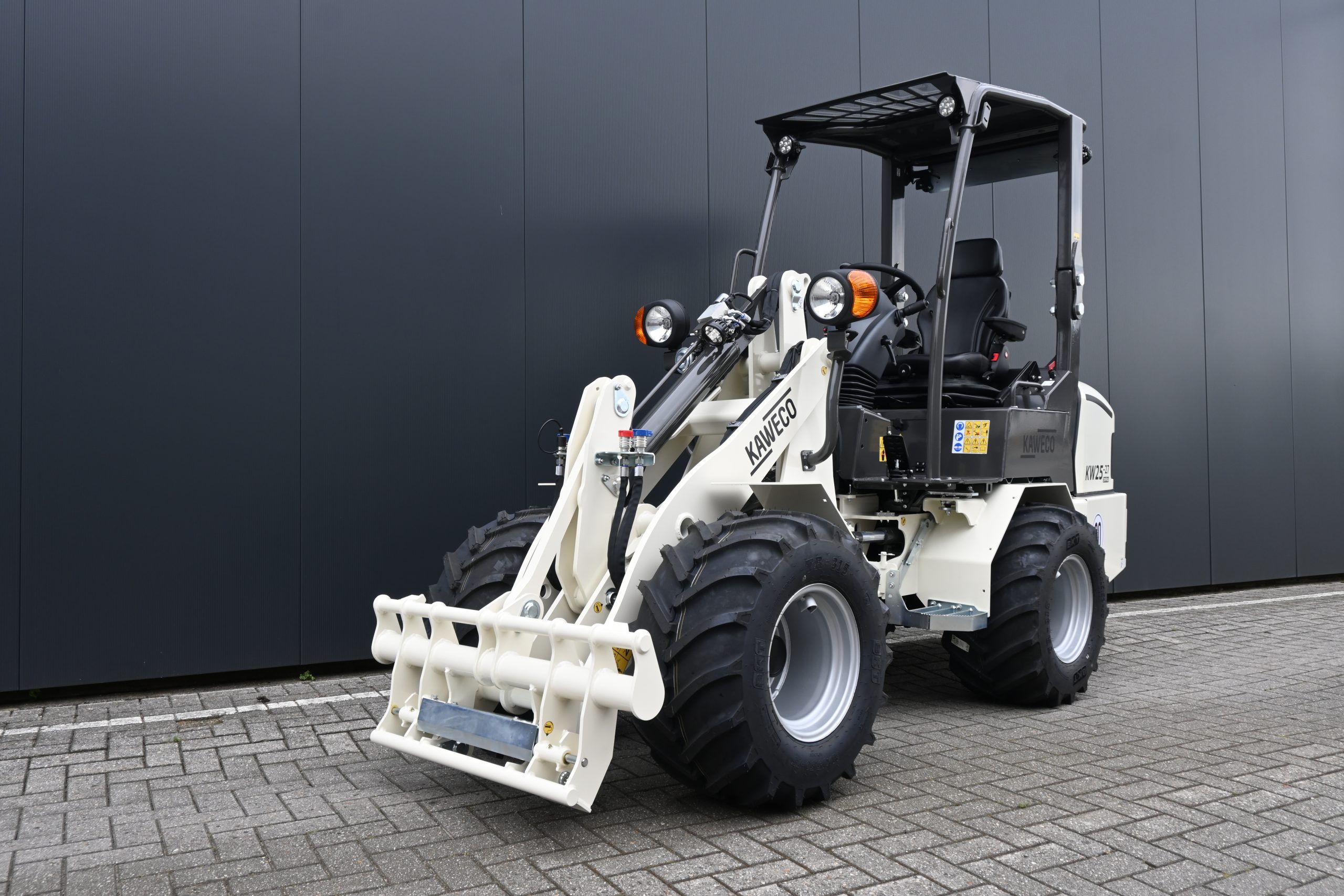

- Any desired RAL color is possible
- Headlamp including high and low beam and LED backlight
- LED for license plate
- Warning beacon
- 50 kg

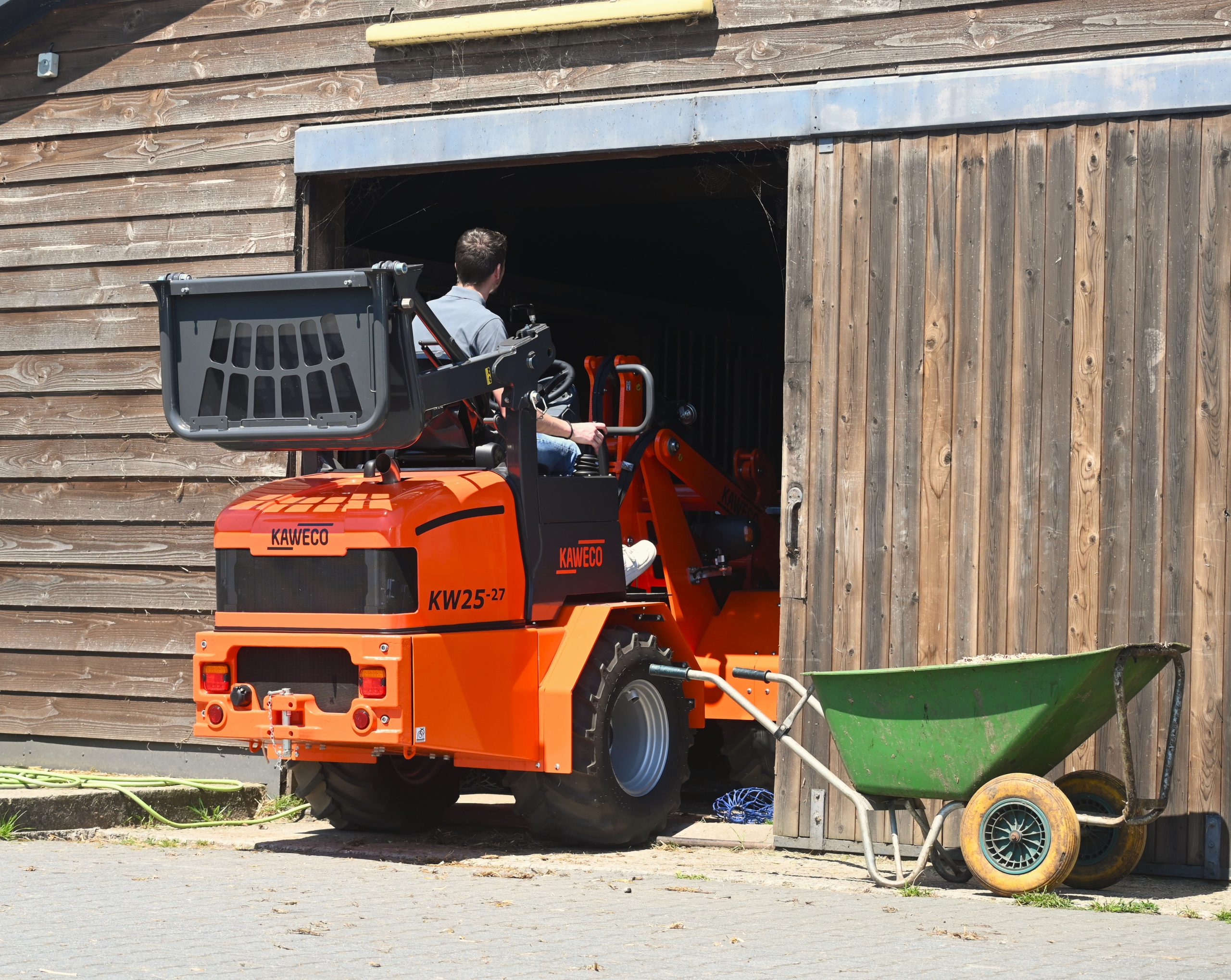

- With folded roof, clearance height is 1.60 m
- ROPS/FOPS certified according to: ISO 3449:2008 & ISO 3471:2008
- Work hydraulics expandable to 60 L/min

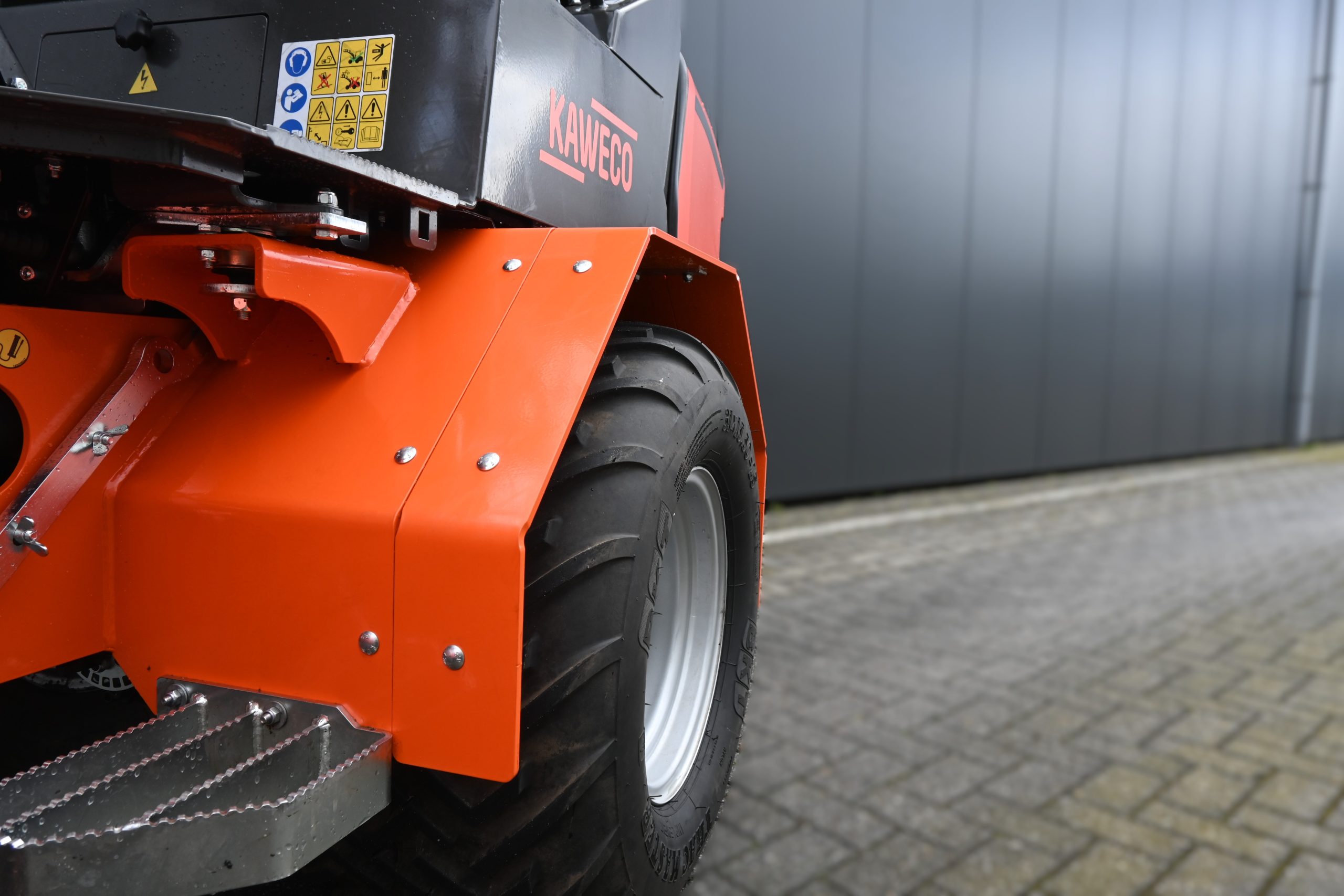

- Metal fender extension
- Alerts the surroundings with a reverse signal

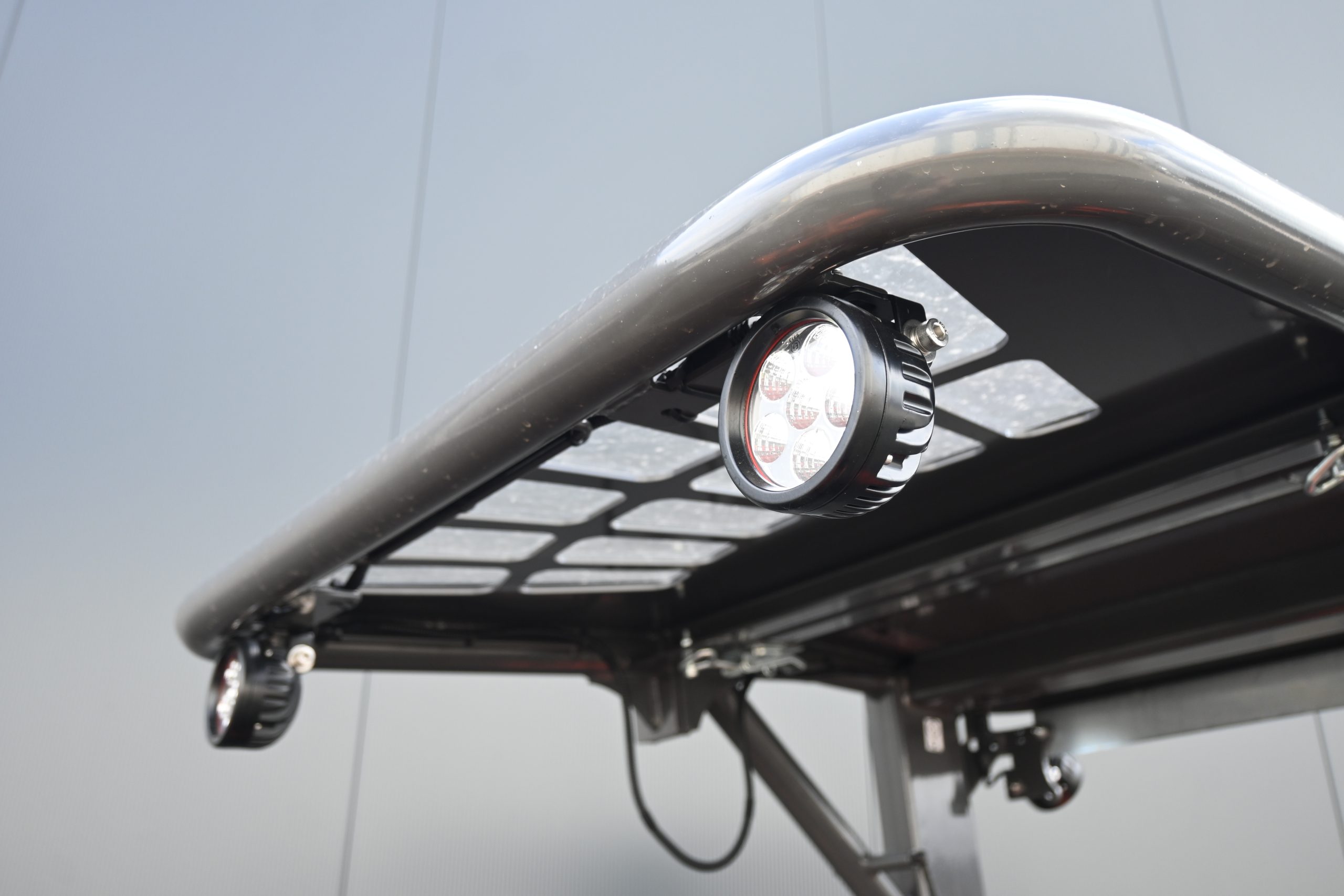

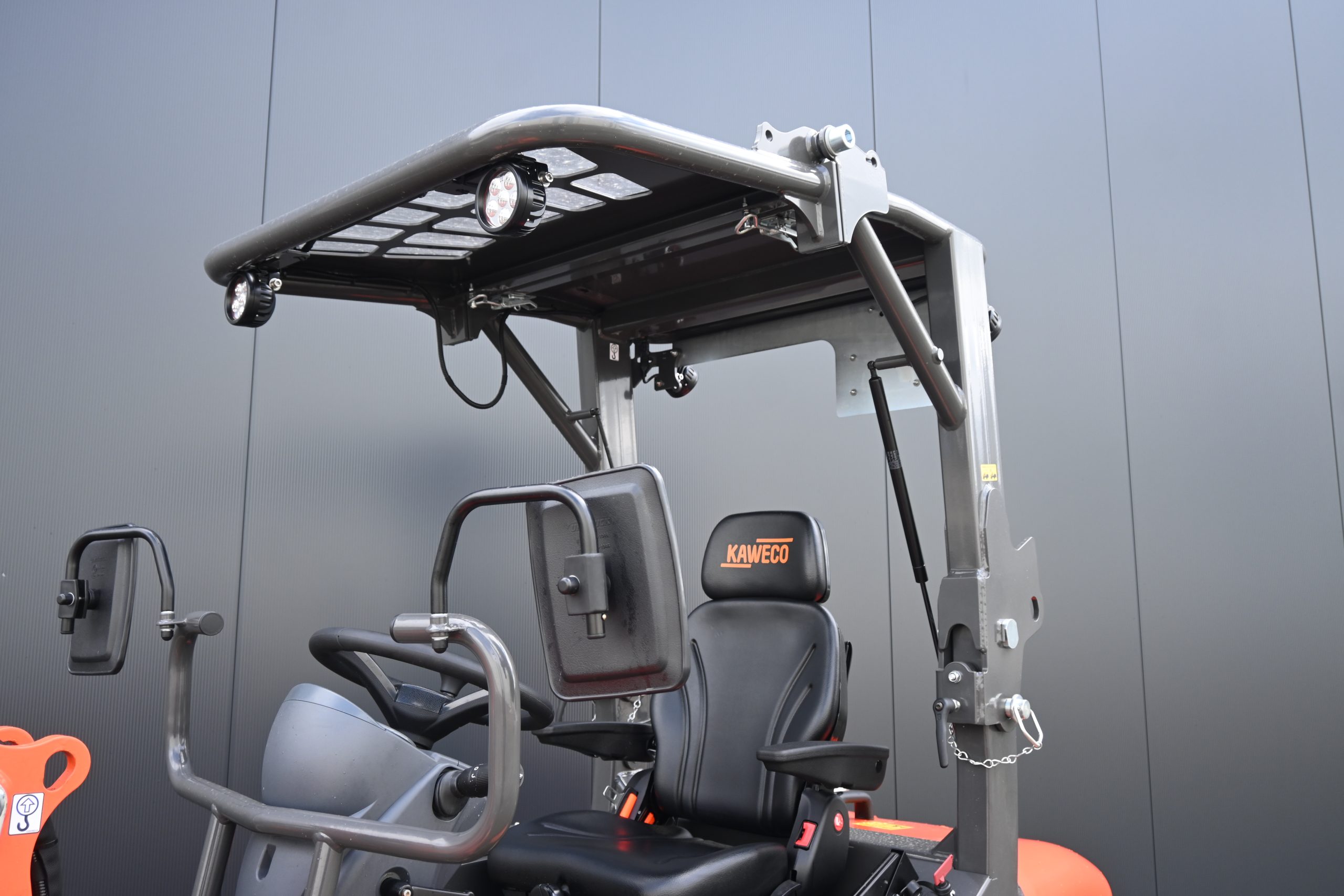

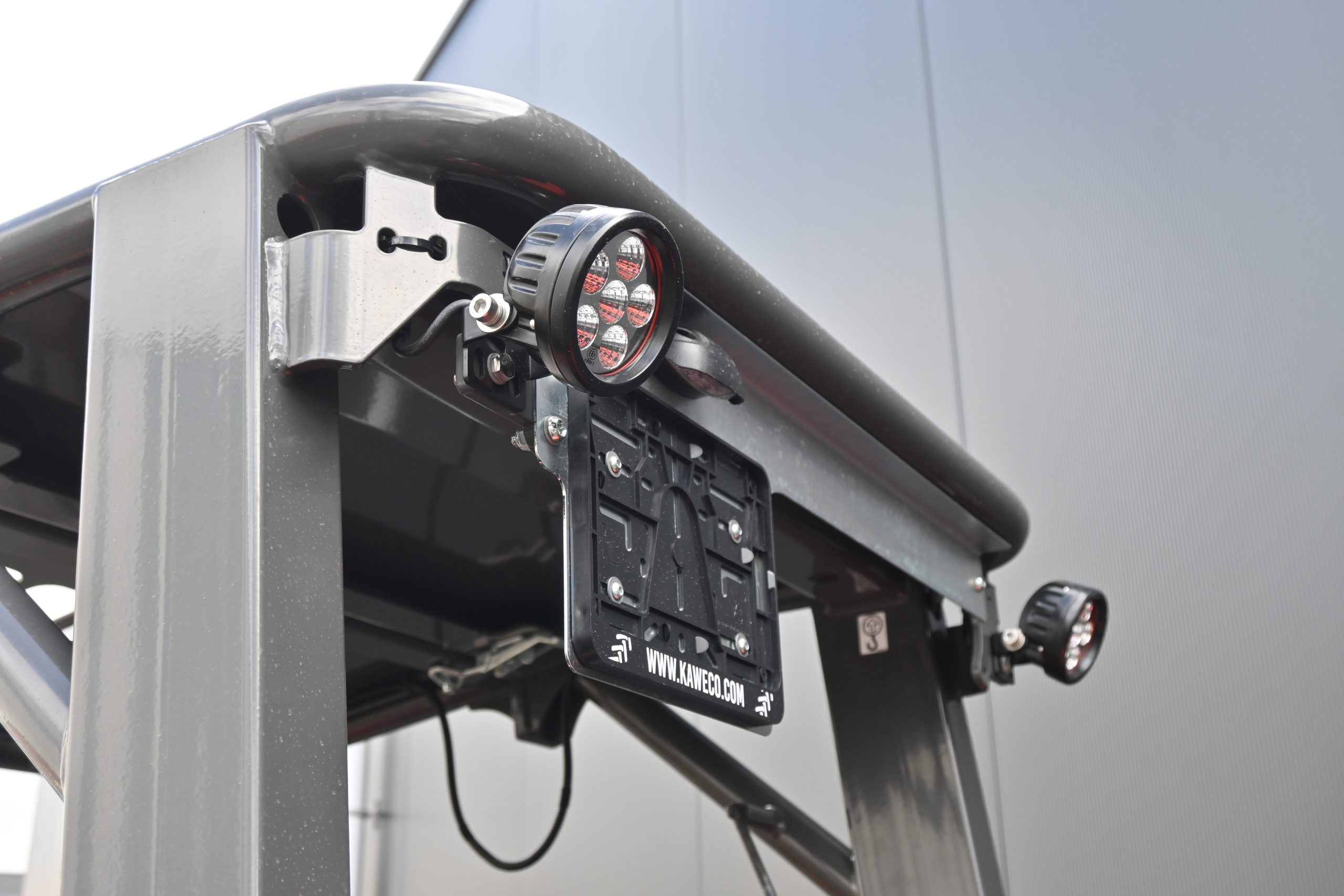

- Roof-mounted LED work lights
- Two lights at the front
- Two lights at the rear
- Suspended seat including safety belt
- Adjustable armrests
- Headrest
- RDW-approved

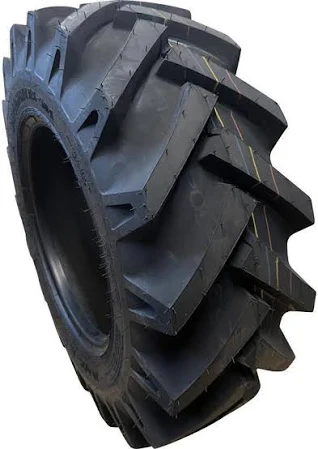

Tire options
- Skid steer profile
- Width: 390 mm
- Diameter: 800 mm
- Machinewidth: 1.336 mm
- Tractionprofile
- Width: 390 mm
- Diameter: 800 mm
- Machinewidth: 1.336 mm
- Lawn profile
- Width: 405 mm
- Diameter: 810 mm
- Machinewidth: 1.347 mm
- Tractionprofile
- Width: 425 mm
- Diameter: 900 mm
- Machinewidth: 1.371 mm
- Lawnprofile
- Width: 425 mm
- Diameter: 900 mm
- Machinewidth: 1.369 mm
Custom tires available upon request.

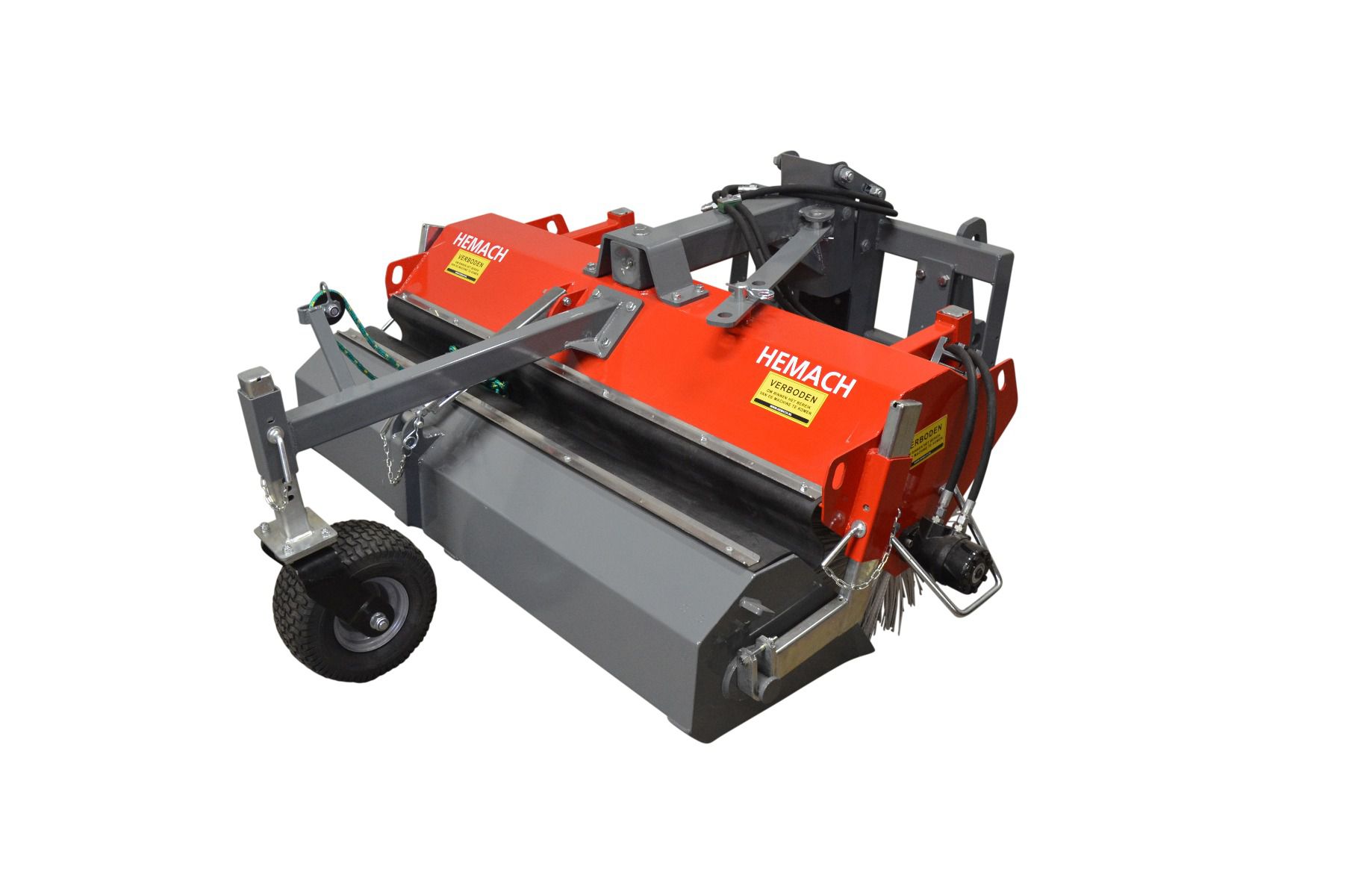

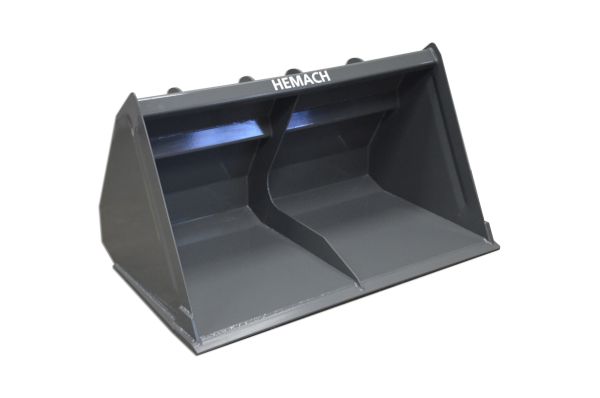

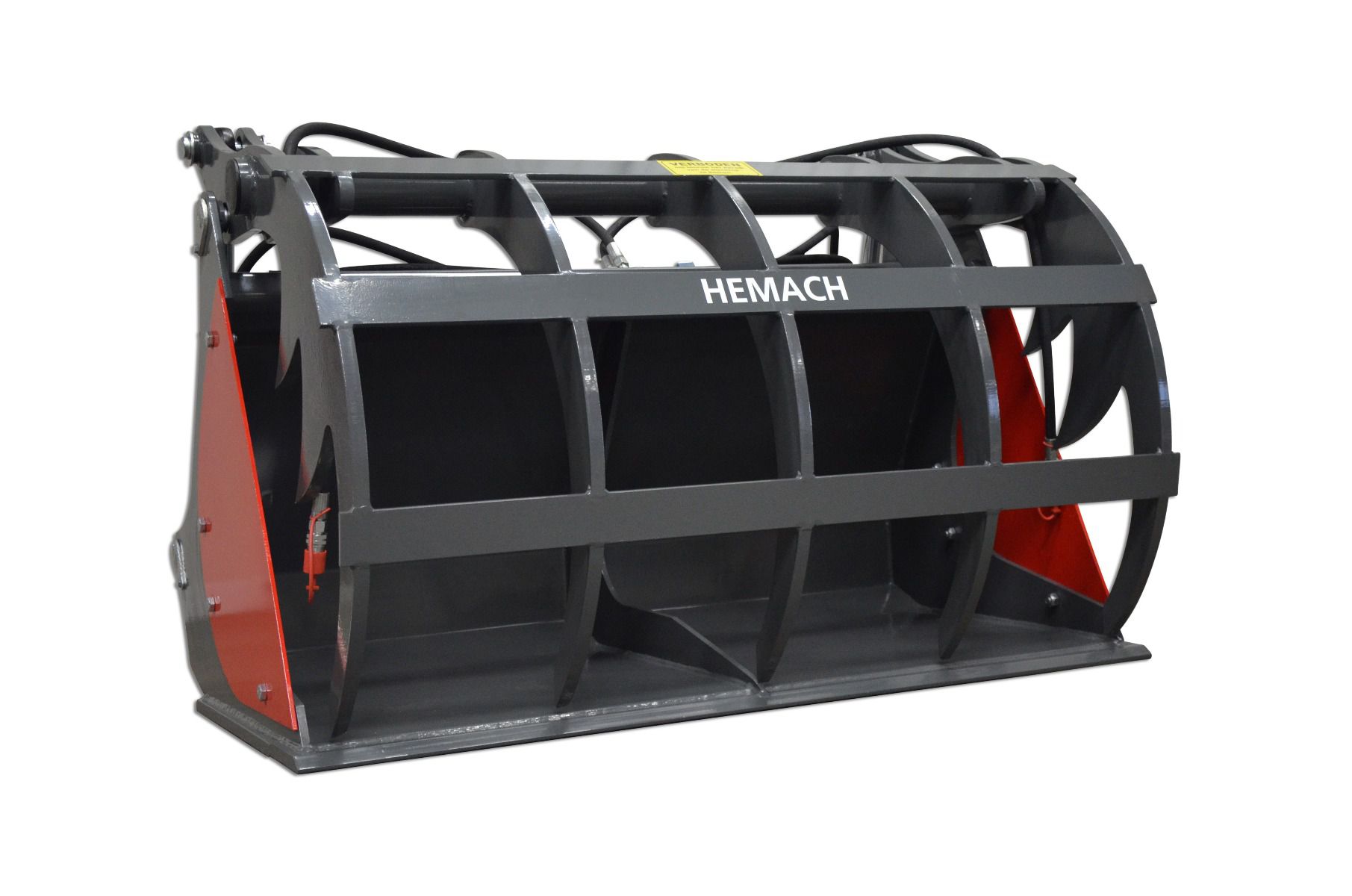

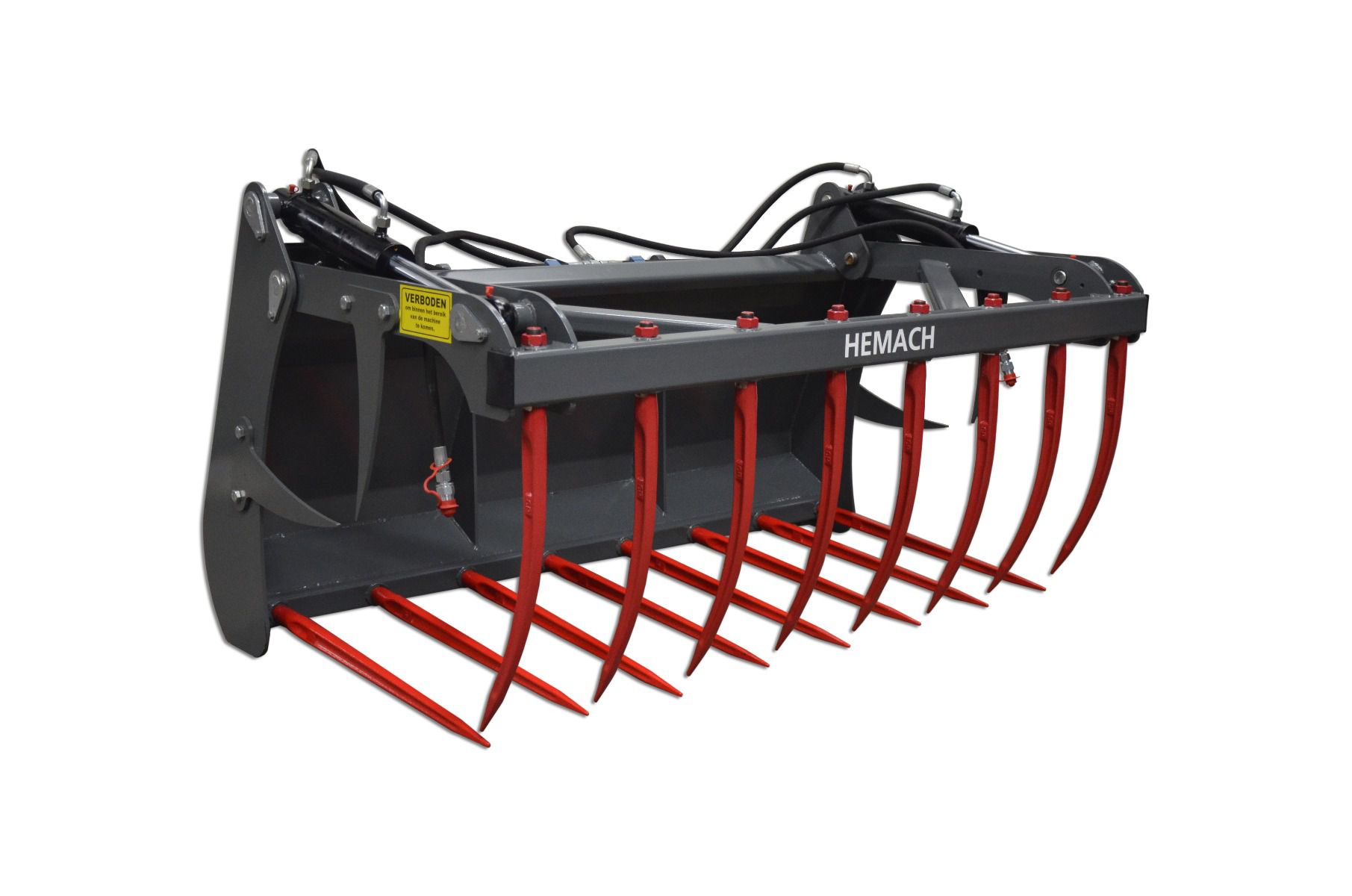

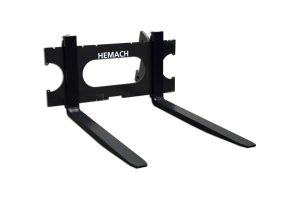

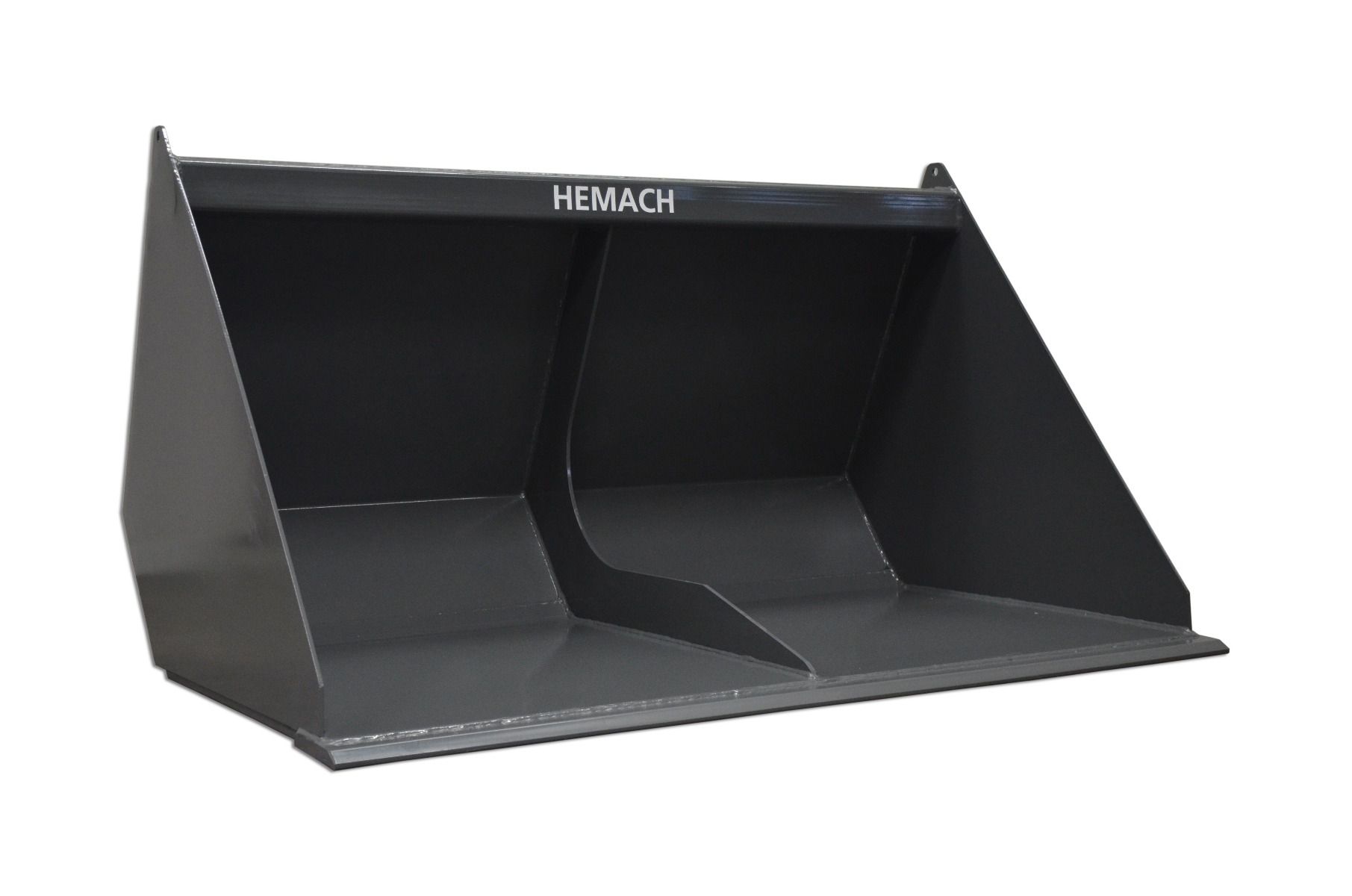

Attachements
- 1.00 m
- 1.20 m
- 1.50 m
- 1.60 m
- 1.50 m
- 1.60 m
- 1.50 m
- 1.60 m
- 1.50 m with hydraulic collection bin
- 1.50 m

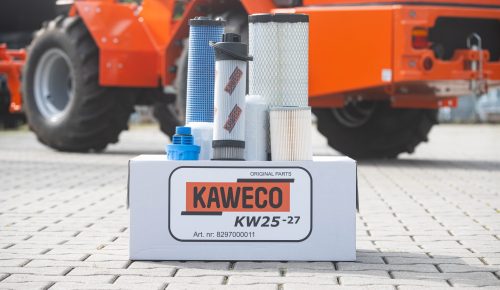

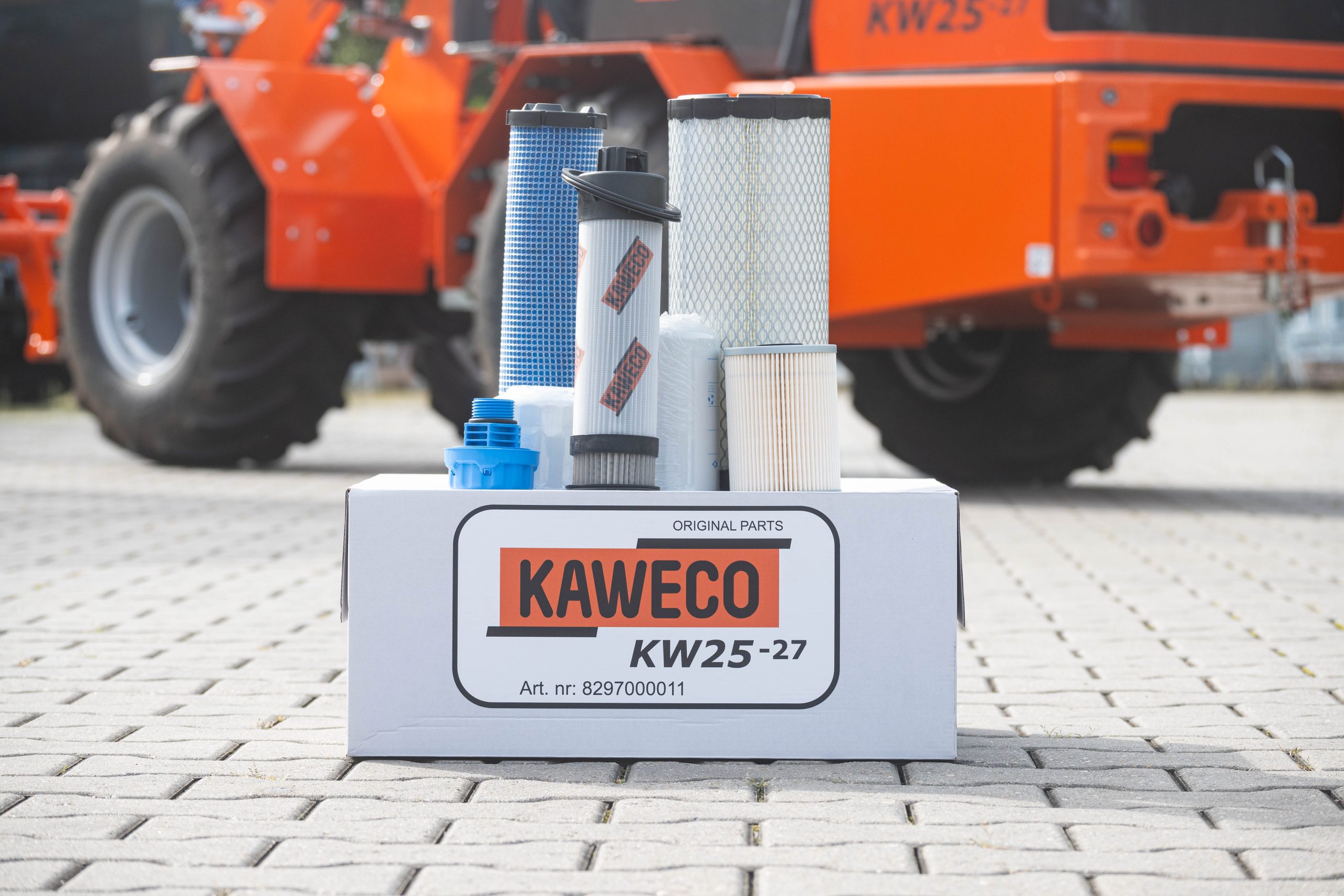

Original KAWECO-filter kit
Original KAWECO-filter kit
- Hydraulic tank ventilation filter
- Engine oil filter
- Suction and return filter element
- Fuel filter
- Air filter element
- Water separator filter element
